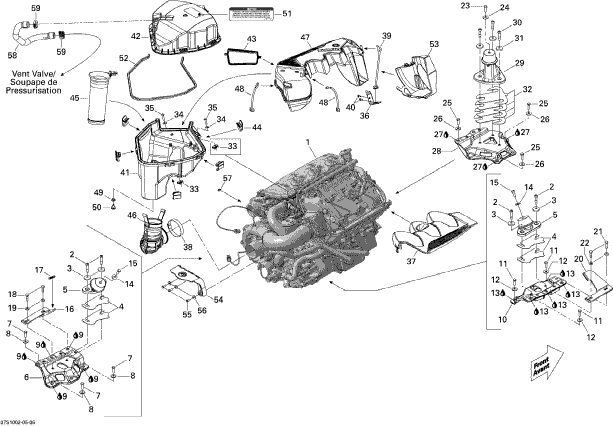

1

XXX

2

250000334

SCREW-SOCKET DIN

3

250200018

WASHER-CONE

4

270000762

SHIM 1-3MM

5

270000688

RUBBER MOUNT

6

270000763

SPACER

7

207382560

SCREW-HEX.CAP DIN.933A2 S.GRIP

8

234082600

WASHER-FLAT DIN.9021B-A2

9

293800005

LOCTITE-271

10

270000766

SPACER

11

207382560

SCREW-HEX.CAP DIN.933A2 S.GRIP

12

234082600

WASHER-FLAT DIN.9021B-A2

13

293800005

LOCTITE-271

14

234082600

WASHER-FLAT DIN.9021B-A2

15

207382560

SCREW-HEX.CAP DIN.933A2 S.GRIP

16

270000796

ENGINE STOP

17

204610371

TRIM-BLACK(1M/PAC)

18

207383060

SCREW-HEX CAP M8x30

19

293050001

WASHER-8MM

20

270000799

ENGINE STOP

21

207383060

SCREW-HEX CAP M8x30

22

293050001

WASHER-8MM

23

207382560

SCREW-HEX.CAP DIN.933A2 S.GRIP

24

234082600

WASHER-FLAT DIN.9021B-A2

25

207382560

SCREW-HEX.CAP DIN.933A2 S.GRIP

26

234082600

WASHER-FLAT DIN.9021B-A2

27

293800005

LOCTITE-271

28

270000767

SPACER

29

270000738

RUBBER MOUNT

30

250000334

SCREW-SOCKET DIN

31

250200018

WASHER-CONE

32

270000770

SHIM 1-3MM

33

420942108

PANEL NUT

34

234062600

WASHER-FLAT DIN.9021B-A2

35

207362560

SCREW-HEX.CAP DIN.933A2 S.GRIP

36

273000260

AIRBOX BRACKET

37

XXX

38

293650179

CLAMP-TRIDON

39

273000261

STRAP

40

207361260

SCREW-HEX.CAP DIN.933A2 S.GRIP

41

273000250

SILENC-AIR LOW

42

273000249

SILENC-AIR UPP

43

293250190

OIL SEAL

44

269501718

CLIP

45

273000252

INTAKE HOSE

46

273000251

CONNECT HOSE

47

273000253

INTAKE TUBE

48

269501299

STRAP

49

293720064

GROMMET

50

275500454

VALVE-CHECK

51

XXX

52

293200123

NEOPRENE SEAL

53

273000271

DEFLECTOR

54

270000735

AIRBOX SUPPORT

55

207361260

SCREW-HEX.CAP DIN.933A2 S.GRIP

56

234062600

WASHER-FLAT DIN.9021B-A2

57

293750002

TIE-RAP 130MM

58

270000807

HOSE-FORMED

59

293650051

CLAMP-TRIDON
