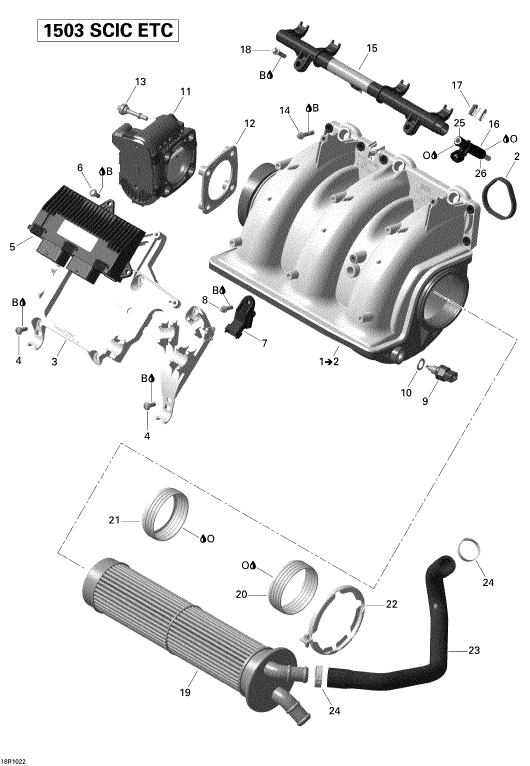

見出番号
部品番号
部品名
数量
1
420867955
INDUCTION MANIFOLD-BV
2
420950740
GASKET
4
420641583
TORX FLANGE SCREW
6
7
420274057
PRESSURE SENSOR
8
420641048
9
420222423
TEMPERATURE SENSOR
10
420227987
THRUST WASHER
11
420892590
THROTTLE BODY SOCKET
12
420950792
RUBBER GASKET
13
420440560
SCREW-TORX
14
420641238
SCREW-TORX FLANGE
16
420874834
INJECTOR
17
420853030
CLIP
18
19
420889653
INTERCOOLER
20
420631990
PROFILE RING
21
420631995
22
420853253
GEAR CLAMP
23
420822174
FORMED HOSE
24
420851673
B
293800060
LOCTITE-243
