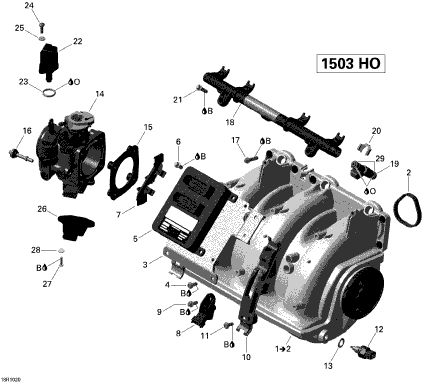

1

420867951

INDUCTION MANIFOLD-BY

2

420950740

GASKET

3

420851521

BASE PLATE

4

420641048

TORX FLANGE SCREW

5

420665861

ELECTRONIC BOX

6

420641583

TORX FLANGE SCREW

7

420660402

CONNECTOR BRACKET

8

420274057

PRESSURE SENSOR

9

420641048

TORX FLANGE SCREW

10

420660410

WIRING SUPPORT

11

420641583

TORX FLANGE SCREW

12

420222423

TEMPERATURE SENSOR

13

420250015

ALUMINUM WASHER

14

420892450

THROTTLE BODY

15

420950792

RUBBER GASKET

16

420440560

SCREW-TORX

17

420641238

SCREW-TORX FLANGE

18

XXX

19

420874432

INJECTOR

20

420851531

INJECTOR CLIP

21

420641238

SCREW-TORX FLANGE

22

420963051

IDLE BYPASS VALVE

23

420631780

O RING

24

420440911

BINDING HEAD SCREW 4-5 NM

25

420845710

SNAP RING

26

270000251

SENSOR-THROTTL

27

208641660

SCREW-PAN HD.PH.DIN.7985A-A2

28

234042600

WASHER-FLAT DIN.9021B-A2

29

XXX

B

293800060

LOCTITE-243

O

XXX
