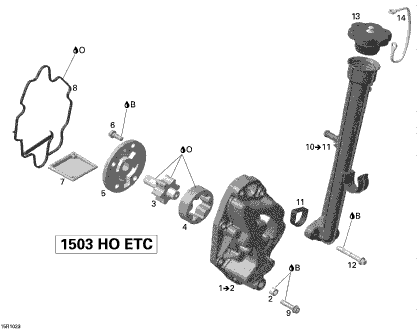

1

420812721

OIL PUMP HOUSING

2

420641323

SCREW

3

420837543

PUMP SHAFT ASSY

4

420956675

OUTER ROTOR 16MM

5

420811850

OIL PUMP COVER

6

420641048

TORX FLANGE SCREW

7

420856520

OIL SIEVE

8

420631486

GASKET

9

420641238

SCREW-TORX FLANGE

10

420856510

OIL FILLER TUBE

11

420430240

GASKET

12

420641198

TORX FLANGE SCREW

13

420956923

PLUG COVER ASSEMBLY YELLOW

14

420660620

RETAINING BAND

B

293800060

LOCTITE-243

O

XXX
