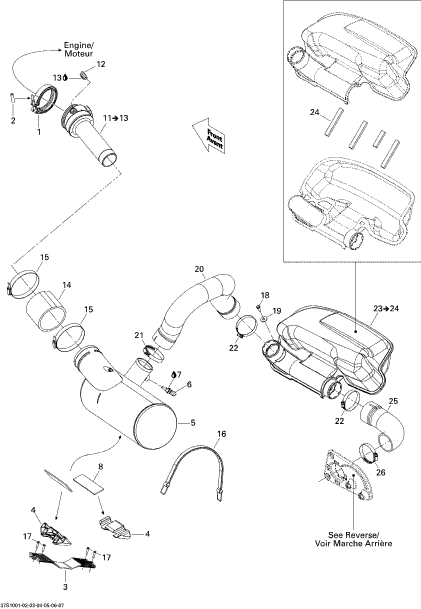

見出番号
部品番号
部品名
数量
1
274001417
EXHAUST CLAMP
2
415080200
POLYURETHANE HOSE
3
274001357
EXHAUST SUPP.
4
274001358
STOPPER
5
274001384
MUFFLER
6
278001016
SENSOR-LIQUID
7
293800038
LOCTITE-518
8
293830126
PAD-RUBBER
11
274001354
PIPE-HEAD
12
293700023
FITTING-ELBOW
13
293800013
SEALANT-PIPE
14
274001348
EXHAUST HOSE
15
293650202
CLAMP GEAR
16
293850093
STRAP-FUEL TANK
17
293150043
RIVET-POP 3/16
18
243162560
SCREW-PLASTITE HEX WR
19
234082600
WASHER-FLAT DIN.9021B-A2
20
274001422
HOSE-EXHAUST
21
293650179
CLAMP-TRIDON
22
23
274001366
RH RESONATOR
24
293200003
SEAL-TRAY
25
274001423
26
