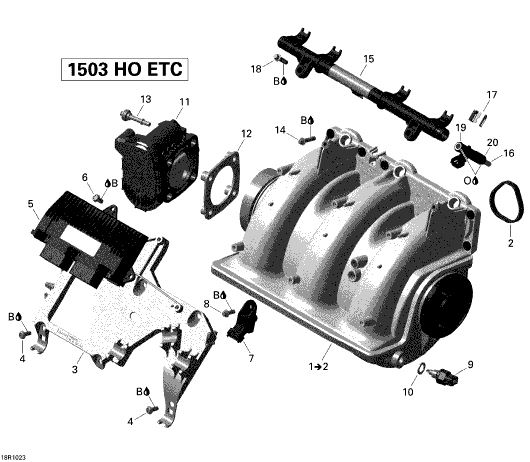

1

420867951

INDUCTION MANIFOLD-BY

2

420950740

GASKET

3

420460841

BASE PLATE

4

420641583

TORX FLANGE SCREW

5

420666322

ELECTRONIC BOX

5

420666323

ELECTRONIC BOX

6

420641583

TORX FLANGE SCREW

7

420274057

PRESSURE SENSOR

8

420641048

TORX FLANGE SCREW

9

420222423

TEMPERATURE SENSOR

10

420227987

THRUST WASHER

11

420892590

THROTTLE BODY SOCKET

12

420950792

RUBBER GASKET

13

420440560

SCREW-TORX

14

420641238

SCREW-TORX FLANGE

15

XXX

16

420874834

INJECTOR

17

420853030

CLIP

18

420641238

SCREW-TORX FLANGE

19

XXX

20

XXX

B

293800060

LOCTITE-243

O

XXX
