純正パーツカタログよりご注文又はお見積

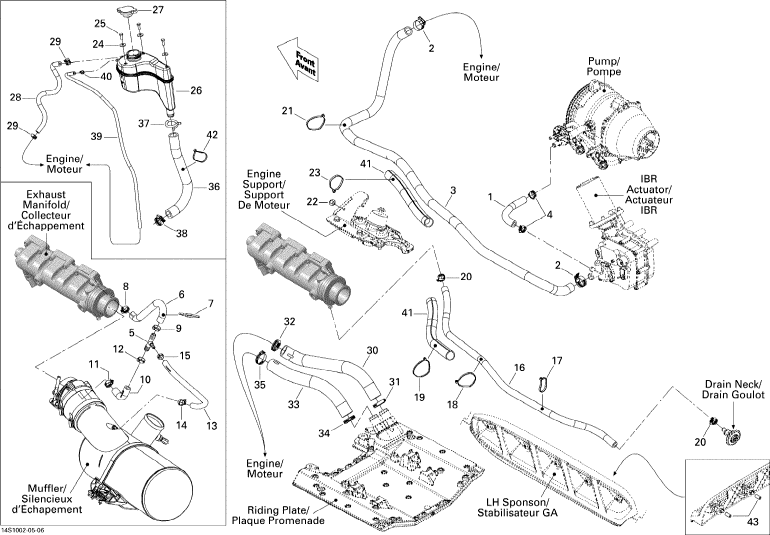

BRP　SEA DOO  2010年式  WAKE PRO 215 26AB ＞ クーリングシステム
>>セクション一覧    >>モデル一覧

見出番号

部品番号

部品名

数量

1

276000237

HOSE-MOLDED

2

293650051

CLAMP-TRIDON

3

276000099

HOSE-19MM

4

293650172

HOSE CLAMP

5

293710116

FITTING-T

6

276000244

HOSE-FORMED

7

293750008

TIE-RAP 350MM

8

293650172

HOSE CLAMP

9

293650012

CLAMP-OETIKER

10

276000245

HOSE-FORMED

11

293650172

HOSE CLAMP

12

293650012

CLAMP-OETIKER

13

276000246

HOSE-FORMED

14

293650171

HOSE CLAMP

15

293650030

CLAMP-OETIKER 185

16

296000303

HOSE 12.5MM 3M/PAC

17

293750008

TIE-RAP 350MM

18

293750008

TIE-RAP 350MM

19

293750008

TIE-RAP 350MM

20

293650172

HOSE CLAMP

21

293750008

TIE-RAP 350MM

22

293730040

DART-MOUNT

23

293750008

TIE-RAP 350MM

24

234061600

WASHER-FLAT DIN125A-A2

25

207362060

SCREW-HEX CAP DIN933A2

26

276000265

TANK-COOLANT

27

276000100

PRESSURE CAP ASSY

28

204300184

HOSE-1/4

29

293650170

HOSE CLAMP

30

276000240

HOSE

31

293650185

CLAMP-TRIDON

32

293650185

CLAMP-TRIDON

33

276000241

HOSE

34

293650185

CLAMP-TRIDON

35

293650185

CLAMP-TRIDON

36

276000099

HOSE-19MM

37

293650115

CLAMP-SPRING

38

293650019

CLAMP-TRIDON

39

415080200

POLYURETHANE HOSE

40

293750001

TIE-RAP 94MM

41

409902200

TUBING-25MM

42

414115200

TIE-RAP 180MM

43

415080200

POLYURETHANE HOSE
