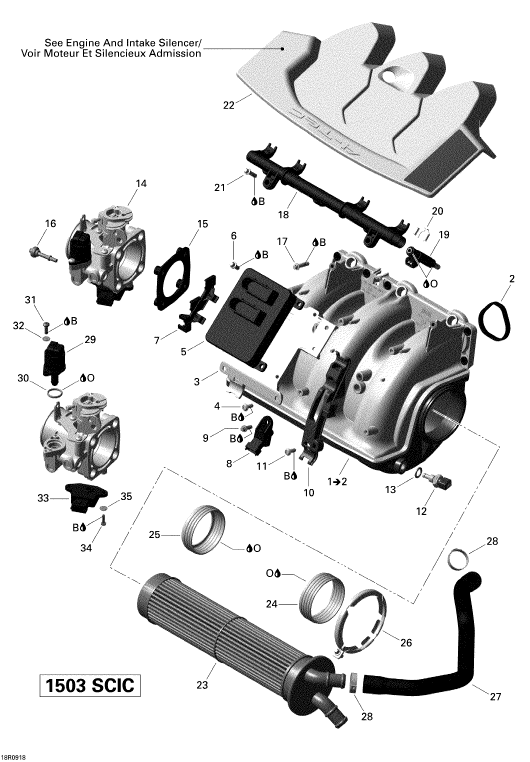

1

420867955

INDUCTION MANIFOLD-BV

2

420950740

GASKET

3

420851521

BASE PLATE

4

420641048

TORX FLANGE SCREW

5

420665789

ELECTRONIC BOX

6

420641583

TORX FLANGE SCREW

7

420660402

CONNECTOR BRACKET

8

420274057

PRESSURE SENSOR

9

420641048

TORX FLANGE SCREW

10

420660410

WIRING SUPPORT

11

420641583

TORX FLANGE SCREW

12

420222423

TEMPERATURE SENSOR

13

420250015

ALUMINUM WASHER

14

420892450

THROTTLE BODY

15

420950792

RUBBER GASKET

16

420440560

SCREW-TORX

17

420641238

SCREW-TORX FLANGE

18

420874394

FUEL RAIL ASSY.

19

420874520

FUEL INJECTOR

20

420851531

INJECTOR CLIP

21

420641238

SCREW-TORX FLANGE

22

XXX

23

420889653

INTERCOOLER

24

420631990

PROFILE RING

25

420631995

PROFILE RING

26

420853253

GEAR CLAMP

27

420822173

FORMED HOSE

28

420851673

GEAR CLAMP

29

420963051

IDLE BYPASS VALVE

30

420631780

O RING

31

420440911

BINDING HEAD SCREW 4-5 NM

32

420845710

SNAP RING

33

270000251

SENSOR-THROTTL

34

208641660

SCREW-PAN HD.PH.DIN.7985A-A2

35

234042600

WASHER-FLAT DIN.9021B-A2

B

293800060

LOCTITE-243

O

XXX
