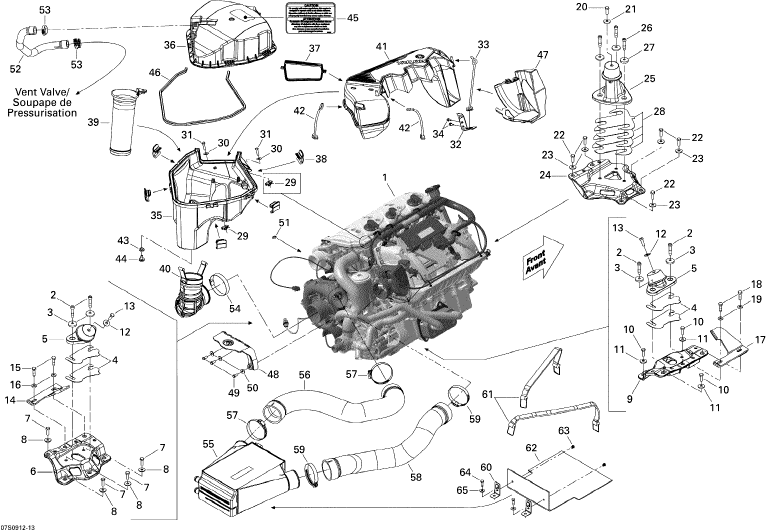

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420150365 |
BLOCK-LONG 1503 HO
|
|
2 |
250000334 |
SCREW-SOCKET DIN
|
|
3 |
250200018 |
WASHER-CONE
|
|
4 |
270000762 |
SHIM 1-3MM
|
|
5 |
270000688 |
RUBBER MOUNT
|
|
6 |
270000763 |
SPACER
|
|
7 |
207382560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
|
|
8 |
234082600 |
WASHER-FLAT DIN.9021B-A2
|
|
9 |
270000766 |
SPACER
|
|
10 |
207382560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
|
|
11 |
234082600 |
WASHER-FLAT DIN.9021B-A2
|
|
12 |
234082600 |
WASHER-FLAT DIN.9021B-A2
|
|
13 |
207382560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
|
|
14 |
270000796 |
ENGINE STOP
|
|
15 |
207383060 |
SCREW-HEX CAP M8x30
|
|
16 |
293050001 |
WASHER-8MM
|
|
17 |
270000799 |
ENGINE STOP
|
|
18 |
207383060 |
SCREW-HEX CAP M8x30
|
|
19 |
293050001 |
WASHER-8MM
|
|
20 |
207382560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
|
|
21 |
234082600 |
WASHER-FLAT DIN.9021B-A2
|
|
22 |
207382560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
|
|
23 |
234082600 |
WASHER-FLAT DIN.9021B-A2
|
|
24 |
270000767 |
SPACER
|
|
25 |
270000738 |
RUBBER MOUNT
|
|
26 |
250000334 |
SCREW-SOCKET DIN
|
|
27 |
250200018 |
WASHER-CONE
|
|
28 |
270000770 |
SHIM 1-3MM
|
|
29 |
420942108 |
PANEL NUT
|
|
30 |
234062600 |
WASHER-FLAT DIN.9021B-A2
|
|
31 |
207362560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
|
|
32 |
273000260 |
AIRBOX BRACKET
|
|
33 |
273000261 |
STRAP
|
|
34 |
207361260 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
|
|
35 |
273000250 |
SILENC-AIR LOW
|
|
36 |
273000249 |
SILENC-AIR UPP
|
|
37 |
293250190 |
OIL SEAL
|
|
38 |
269501718 |
CLIP
|
|
39 |
273000252 |
INTAKE HOSE
|
|
40 |
273000251 |
CONNECT HOSE
|
|
41 |
273000253 |
INTAKE TUBE
|
|
42 |
269501299 |
STRAP
|
|
43 |
293720064 |
GROMMET
|
|
44 |
275500454 |
VALVE-CHECK
|
|
45 |
219902673 |
INST-LABEL
|
|
46 |
293200123 |
NEOPRENE SEAL
|
|
47 |
273000271 |
DEFLECTOR
|
|
48 |
270000735 |
AIRBOX SUPPORT
|
|
49 |
207361260 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
|
|
50 |
234062600 |
WASHER-FLAT DIN.9021B-A2
|
|
51 |
293750002 |
TIE-RAP 130MM
|
|
52 |
270000761 |
HOSE-FORMED
|
|
53 |
293650051 |
CLAMP-TRIDON
|
|
54 |
293650179 |
CLAMP-TRIDON
|
|
55 |
276000179 |
INTERCOOLER
|
|
56 |
273000254 |
INLET HOSE
|
|
57 |
293650107 |
CLAMP-TRIDON
|
|
58 |
273000255 |
OUTLET HOSE
|
|
59 |
293650107 |
CLAMP-TRIDON
|
|
60 |
275500743 |
CLIP-STRAP 90
|
|
61 |
293850067 |
STRAP-FUEL TANK
|
|
62 |
293830138 |
PAD-RUBBER
|
|
63 |
293730016 |
DART-BLACK
|
|
64 |
243162060 |
SCREW-PLASTITE HEXUNSL
|
|
65 |
234062600 |
WASHER-FLAT DIN.9021B-A2
|
|
