純正パーツカタログよりご注文又はお見積

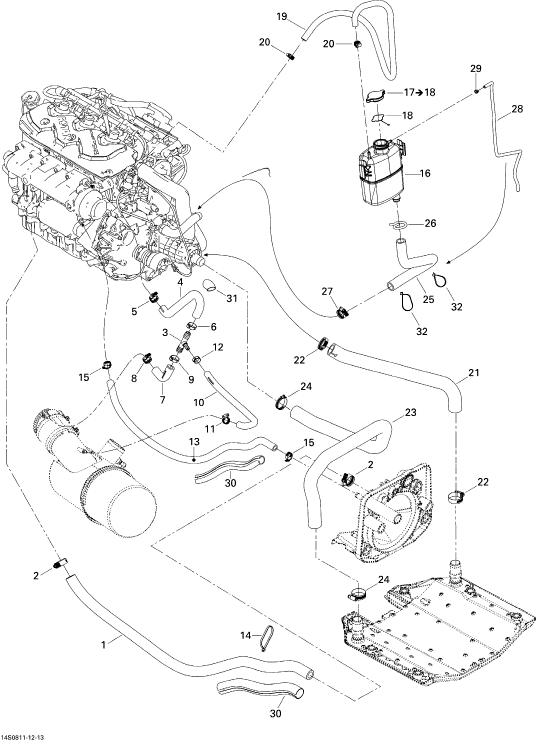

BRP　SEA DOO  2008年式  GTI SE 155　308B ＞ クーリングシステム
>>セクション一覧    >>モデル一覧

見出番号

部品番号

部品名

数量

1

276000158

HOSE-19MM (PC=1M)

2

293650051

CLAMP-TRIDON

2

293650051

CLAMP-TRIDON

3

293710116

FITTING-T

3

293710116

FITTING-T

4

276000191

HOSE-FORMED

4

276000191

HOSE-FORMED

5

293650172

HOSE CLAMP

5

293650172

HOSE CLAMP

6

293650012

CLAMP-OETIKER

6

293650012

CLAMP-OETIKER

7

276000137

HOSE-FORMED

7

276000137

HOSE-FORMED

8

293650172

HOSE CLAMP

8

293650172

HOSE CLAMP

9

293650012

CLAMP-OETIKER

9

293650012

CLAMP-OETIKER

10

276000209

HOSE-FORMED

10

276000209

HOSE-FORMED

11

293650171

HOSE CLAMP

11

293650171

HOSE CLAMP

12

293650030

CLAMP-OETIKER 185

12

293650030

CLAMP-OETIKER 185

13

276000151

HOSE-12 5MM (PC=1M)

13

276000151

HOSE-12 5MM (PC=1M)

14

293750008

TIE-RAP 350MM

14

293750008

TIE-RAP 350MM

15

293650172

HOSE CLAMP

15

293650172

HOSE CLAMP

16

276000086

TANK-COOLANT

16

276000086

TANK-COOLANT

17

276000100

PRESSURE CAP ASSY

17

276000100

PRESSURE CAP ASSY

18

276000127

LATCH

18

276000127

LATCH

19

275500549

HOSE-1/4 (10M/PAC)

19

275500549

HOSE-1/4 (10M/PAC)

20

293650170

HOSE CLAMP

20

293650170

HOSE CLAMP

21

276000153

HOSE-RIGHT

21

276000153

HOSE-RIGHT

22

293650185

CLAMP-TRIDON

22

293650185

CLAMP-TRIDON

23

276000154

HOSE-LEFT

23

276000154

HOSE-LEFT

24

293650185

CLAMP-TRIDON

24

293650185

CLAMP-TRIDON

25

276000099

HOSE-19MM

25

276000099

HOSE-19MM

26

293650115

CLAMP-SPRING

26

293650115

CLAMP-SPRING

27

293650019

CLAMP-TRIDON

27

293650019

CLAMP-TRIDON

28

415080200

POLYURETHANE HOSE

28

415080200

POLYURETHANE HOSE

29

293750001

TIE-RAP 94MM

29

293750001

TIE-RAP 94MM

30

409902200

TUBING-25MM

30

409902200

TUBING-25MM

31

276000162

SHRINK TUBING

31

276000162

SHRINK TUBING

32

414115200

TIE-RAP 180MM

32

414115200

TIE-RAP 180MM
