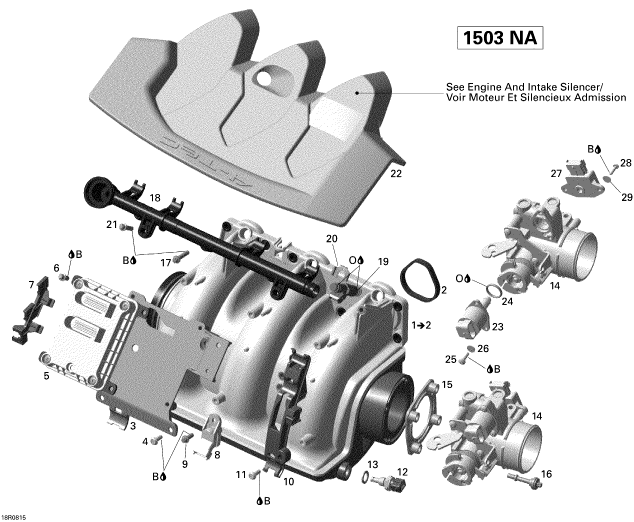

1

420867921

AIR INTAKE MANIFOLD

2

420950740

GASKET

3

420851521

BASE PLATE

4

420641048

TORX FLANGE SCREW

5

420665783

ELECTRONIC BOX

6

420641583

TORX FLANGE SCREW

7

420660402

CONNECTOR BRACKET

8

420274055

TEMPERATURE SENSOR

9

420641048

TORX FLANGE SCREW

10

420660410

WIRING SUPPORT

11

420641583

TORX FLANGE SCREW

12

420222423

TEMPERATURE SENSOR

13

420250015

ALUMINUM WASHER

14

420892452

THROTTLE BODY

15

420950792

RUBBER GASKET

16

420440560

SCREW-TORX

17

420641238

SCREW-TORX FLANGE

18

420874391

FUEL RAIL ASSY.

19

420874430

INJECTOR

20

420851531

INJECTOR CLIP

21

420641238

SCREW-TORX FLANGE

23

420665940

IDLE BYPASS VALVE

24

420631780

O RING

25

420440911

BINDING HEAD SCREW 4-5 NM

26

420845710

SNAP RING

27

270000251

SENSOR-THROTTL

28

208641660

SCREW-PAN HD.PH.DIN.7985A-A2

29

234042600

WASHER-FLAT DIN.9021B-A2

B

293800060

LOCTITE-243
