純正パーツカタログよりご注文又はお見積

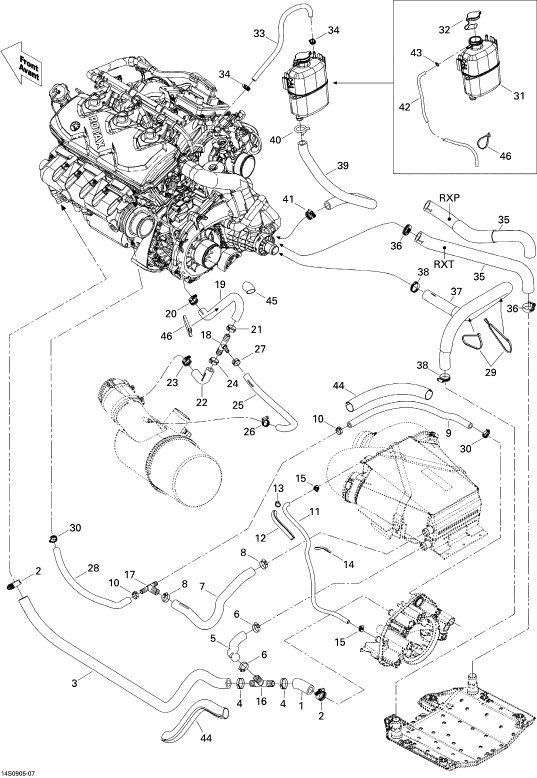

BRP　SEA DOO  2009年式  RXT-X 255RS　318B /319B ＞ クーリングシステム
>>セクション一覧    >>モデル一覧

見出番号

部品番号

部品名

数量

1

276000158

HOSE-19MM (PC=1M)

2

293650051

CLAMP-TRIDON

3

276000158

HOSE-19MM (PC=1M)

4

293650099

CRIMP CLAMP

5

276000181

HOSE-FORMED

6

293650051

CLAMP-TRIDON

7

276000183

HOSE-FORMED

8

293650051

CLAMP-TRIDON

9

276000151

HOSE-12 5MM (PC=1M)

10

293650012

CLAMP-OETIKER

11

275500548

HOSE-5/16 5M/PAC

12

415080000

TUBING-16MM I.D.1M/PAC

13

293750002

TIE-RAP 130MM

14

414115200

TIE-RAP 180MM

15

293650171

HOSE CLAMP

16

293710131

FITTING-T

17

293710132

FITTING-T

18

293710116

FITTING-T

19

276000191

HOSE-FORMED

20

293650172

HOSE CLAMP

21

293650012

CLAMP-OETIKER

22

276000137

HOSE-FORMED

23

293650172

HOSE CLAMP

24

293650012

CLAMP-OETIKER

25

276000209

HOSE-FORMED

26

293650171

HOSE CLAMP

27

293650030

CLAMP-OETIKER 185

28

276000151

HOSE-12 5MM (PC=1M)

29

293750008

TIE-RAP 350MM

30

293650172

HOSE CLAMP

31

276000086

TANK-COOLANT

32

276000100

PRESSURE CAP ASSY

33

275500670

HOSE-1/4 (PC=1)

34

293650170

HOSE CLAMP

35

276000120

HOSE-RIGHT

36

293650045

CLAMP-TRIDON

37

276000195

HOSE-LEFT

38

293650045

CLAMP-TRIDON

39

276000184

HOSE-MOLDED

40

293650115

CLAMP-SPRING

41

293650019

CLAMP-TRIDON

42

415080200

POLYURETHANE HOSE

43

293750001

TIE-RAP 94MM

44

409902200

TUBING-25MM

45

276000162

SHRINK TUBING

46

414115200

TIE-RAP 180MM
