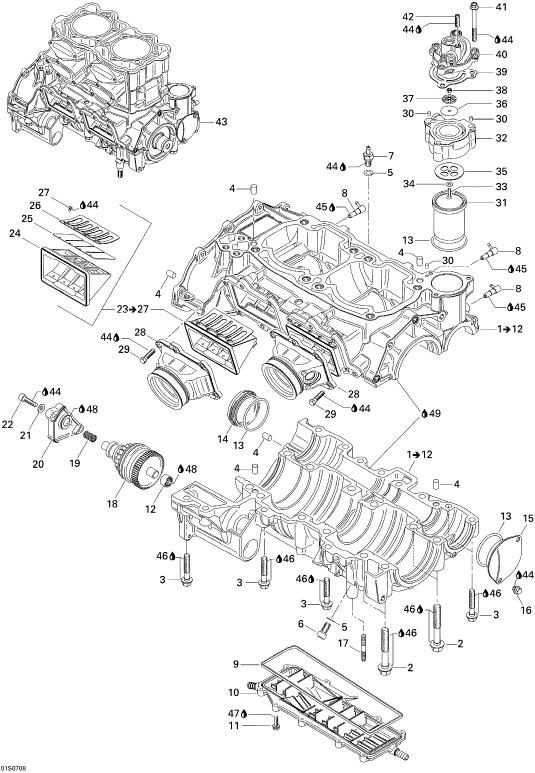

1

420888534

CRANKCASE-ASSY

2

420941333

SCREW-HEX.FLAN

3

420940638

SCREW-HEX.FLAN

4

420632010

PIN-CENTER

5

420950141

RING-SEALING

6

205081660

SCREW-SOCKET HD.DIN.912A2

7

420640970

NIPPLE-VENT

8

420956510

VALVE-CHECK

9

420931880

RUBBER RING

10

420811430

COVER-WATERCHANNEL

11

420841558

SCREW-TAPTITE

12

420232480

BUSHING-NEEDLE

13

420230300

O-RING

14

420811200

COVER

15

420811205

COVER

16

207661244

SCREW-HEX.FLANGE DIN.6921

17

420840290

STUD-M10 X 18

18

420888042

DRIVE-STARTER

19

420938204

SPRING

20

420811210

COVER-DRIVE ST

21

420845020

WASHER-SPRING

22

420840401

SCREW-ALLEN M6X22 DIN.912

23

420924602

REED VALVE ASSEMBLY

25

420924612

REED-PEDAL

26

420924617

STOP-REED PEDAL

27

420941215

SCREW-OVAL HEAD M3X5

28

420867890

ADAPTOR-INTAKE

29

420940568

SCREW-HEX

30

420232020

PIN

31

420923911

SLEEVE-COMPRESSOR

32

420923890

HEAD-COMPRESSOR

33

420841368

SCREW-OVAL HEAD

34

420944590

WASHER

35

420854500

REED-INLET DISC

36

420854510

REED-EXHAUST DISC

37

420944600

GUIDE-DIAPHRAGM

38

420242533

NUT-LOCK

39

420931870

GASKET

40

420923902

COVER-COMPRESSOR

41

420640563

SCREW-HEX.FLAN

42

420640873

SCREW-ADJUSTER

43

420094707

BLOCK-SHORT947

44

293800060

LOCTITE-243

45

413711400

LOCTITE-648

46

293800038

LOCTITE-518

47

293800070

LOCT-ANTISEIZE

48

413707000

DOW CORNING 111

49

293800081

LOCTITE-5910
