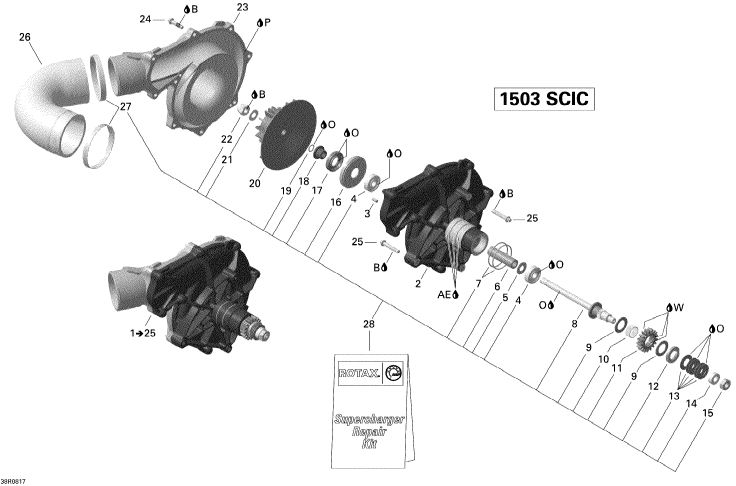

1

420881939

SUPERCHARGER ASSY

2

420867167

COMPRESSOR BASE PLATE

3

420929650

PIN-DRIVE 5X10

4

420832710

BALL BEARING

5

420227685

THRUST WASHER

7

420650270

O-RING

10

420632430

NEEDLE PIN

12

420926377

LOCK WASHER

15

420942950

NUT-HEX.M10X1

16

420926393

THRUST WASHER

17

420950940

OIL SEAL ATS

18

420947012

STEP COLLAR

19

420950950

O RING

20

420867191

COMPRESSOR IMPELLER

21

420627418

SHIM

22

420842834

CAP NUT

23

420867152

COMPRESSOR HOUSING

24

420641238

SCREW-TORX FLANGE

25

420641258

SCREW TORX FLANGE M6 X 35

26

420660151

FORM HOSE

27

420851703

GEAR CLAMP

28

420881100

SUPERCHARGER REPAIR SCIC

B

293800060

LOCTITE-243

P

293800081

LOCTITE-5910

W

293550021

GREASE-ISOFLEX

AE

293550030

GREASE
