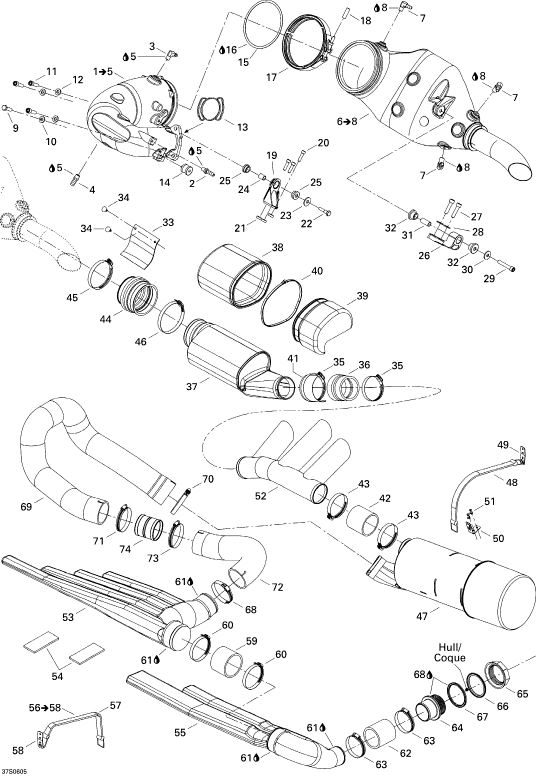

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
274001333 |
PIPE-HEAD
|
|
2 |
293710037 |
CONNECTOR-MALE
|
|
3 |
293700016 |
FITTING-ELBOW
|
|
4 |
293710021 |
CONNECTOR-MALE
|
|
5 |
293800018 |
SEALANT-PIPE
|
|
6 |
274001334 |
CONE PIPE
|
|
7 |
293700016 |
FITTING-ELBOW
|
|
8 |
293800018 |
SEALANT-PIPE
|
|
9 |
245103570 |
SCREW-HEX.CAP DIN.933A4 S.GRIP
|
|
10 |
211200051 |
WASHER-FLAT
|
|
11 |
244003570 |
SCREW-SOCKET DIN.912A4 S.GRIP
|
|
12 |
211200051 |
WASHER-FLAT
|
|
13 |
420931990 |
GASKET
|
|
14 |
274000839 |
ISOLATOR
|
|
15 |
274000511 |
RING-SEALING
|
|
16 |
293800090 |
SEALANT
|
|
17 |
274000510 |
CLAMP-EXHAUST
|
|
18 |
275000007 |
HOSE-8MM.(10M/PAC)
|
|
19 |
274001109 |
SUPP-PIPE
|
|
20 |
244083060 |
SCREW-SOCKET DIN.912A2 S.GRIP
|
|
21 |
250200012 |
WASHER-FLAT M8.4
|
|
22 |
245004060 |
SCREW-HEX.CAP-DIN.931A2 S.GRIP
|
|
23 |
234002600 |
WASHER-FLAT DIN.9021B-A2
|
|
24 |
274000861 |
BUSHING
|
|
25 |
293830065 |
BUSHING-RUBBER
|
|
26 |
274001328 |
SUPPORT
|
|
27 |
244084070 |
SCREW-SOCKET DIN.912A4 S.GRIP
|
|
28 |
234082600 |
WASHER-FLAT DIN.9021B-A2
|
|
29 |
244006060 |
SCREW-SOCKET DIN.912A2 S.GRIP
|
|
30 |
234002600 |
WASHER-FLAT DIN.9021B-A2
|
|
31 |
274001321 |
BUSHING
|
|
32 |
293830114 |
BUSHING-RUBBER
|
|
33 |
293830109 |
PAD-RUBBER
|
|
34 |
293730011 |
DART-BLACK
|
|
35 |
293650006 |
CLAMP-TRIDON
|
|
36 |
274001234 |
HOSE-EXHAUST
|
|
37 |
274001219 |
MUFFLER-WELD
|
|
38 |
274001276 |
COVER-MUFFLER
|
|
39 |
274001322 |
COVER-MUFFLER
|
|
40 |
293750020 |
TIE-RAP 838MM
|
|
41 |
274001235 |
HEAT SHIELD
|
|
42 |
274001326 |
HOSE-EXHAUST
|
|
43 |
293650006 |
CLAMP-TRIDON
|
|
44 |
274001314 |
EXHAUST BELLOW
|
|
45 |
204000079 |
CLAMP-TRIDON
|
|
46 |
293650169 |
CLAMP-TRIDON
|
|
47 |
274001231 |
MUFFLER ASS Y
|
|
48 |
293850067 |
STRAP-FUEL TANK
|
|
49 |
293850024 |
CLIP-STRAP
|
|
50 |
293850075 |
CLIP-STRAP 90
|
|
51 |
293150037 |
RIVET-AVDEL 3/16
|
|
52 |
274001230 |
RESONATOR
|
|
53 |
274000700 |
RESONATOR-LH.
|
|
54 |
274000752 |
PAD-RUBBER
|
|
55 |
274000701 |
RESONATOR-LH.
|
|
56 |
293850082 |
STRAP ASSY
|
|
57 |
293850036 |
STRAP-FUEL TANK
|
|
58 |
293850030 |
CLIP-STRAP
|
|
59 |
274000726 |
HOSE-EXHAUST
|
|
60 |
204000079 |
CLAMP-TRIDON
|
|
61 |
293800090 |
SEALANT
|
|
62 |
274001304 |
HOSE-EXHAUST
|
|
63 |
293650064 |
CLAMP-TRIDON
|
|
64 |
274000843 |
OUTLET-EXHAUST
|
|
65 |
274000835 |
NUT-72MM
|
|
66 |
274000225 |
WASHER-STABILIZING
|
|
67 |
293250041 |
GASKET
|
|
68 |
296000309 |
SEAL-SILICONE
|
|
69 |
274001311 |
HOSE-EXHAUST
|
|
70 |
293650006 |
CLAMP-TRIDON
|
|
71 |
293650107 |
CLAMP-TRIDON
|
|
72 |
274001312 |
HOSE-EXHAUST
|
|
73 |
293650107 |
CLAMP-TRIDON
|
|
74 |
274001313 |
HOSE ADAPTER
|
|
