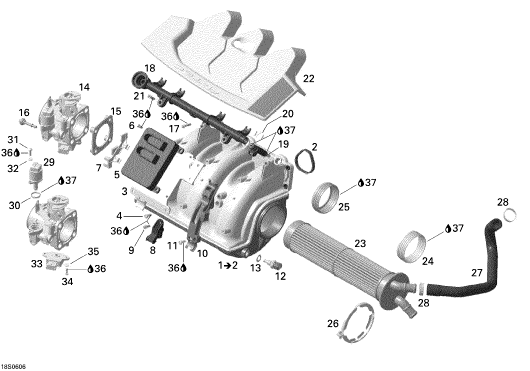

1

420867955

INDUCTION MANIFOLD-BV

2

420950740

GASKET

3

420851521

BASE PLATE

4

420440167

SCREW-TORX FLANGE

5

420664946

ELECTRONIC BOX

6

420641583

TORX FLANGE SCREW

7

420660402

CONNECTOR BRACKET

8

420274057

PRESSURE SENSOR

9

420440167

SCREW-TORX FLANGE

10

420660410

WIRING SUPPORT

11

420641583

TORX FLANGE SCREW

12

420222429

TEMPERATURE SENSOR

13

420250015

ALUMINUM WASHER

14

420889024

THROTTLE BODY SOCKET ASSY

15

420950792

RUBBER GASKET

16

420440567

SCREW

17

420440237

SCREW-TORX FLANGE

18

420874391

FUEL RAIL ASSY.

19

420874520

FUEL INJECTOR

20

420851531

INJECTOR CLIP

21

420440237

SCREW-TORX FLANGE

23

420889652

INTERCOOLER

24

420631990

PROFILE RING

25

420631995

PROFILE RING

26

420853253

GEAR CLAMP

27

420822172

FORMED HOSE

28

420851673

GEAR CLAMP

29

420963050

IDLE BYPASS VALVE

30

420631780

O RING

31

420440911

BINDING HEAD SCREW 4-5 NM

32

420845710

SNAP RING

33

270000251

SENSOR-THROTTL

34

208641660

SCREW-PAN HD.PH.DIN.7985A-A2

35

234042600

WASHER-FLAT DIN.9021B-A2

36

293800060

LOCTITE-243

37

219700346

4 STROKE OIL 10W-40
