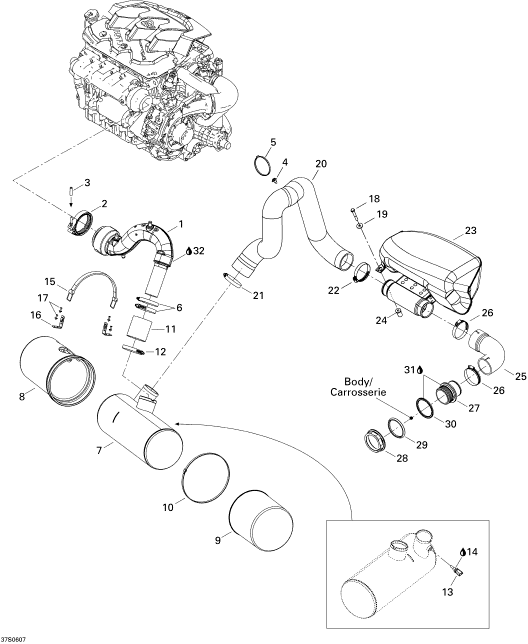

1

274001049

EXHAUST PIPE

2

274000959

EXHAUST CLAMP

3

415080200

POLYURETHANE HOSE

4

293730018

DART-MOUNT

5

293750008

TIE-RAP 350MM

6

293650107

CLAMP-TRIDON

7

274001095

MUFFLER

8

274001008

MUFFLER COVER

9

274000984

COVER-MUFFLER

10

293750020

TIE-RAP 838MM

11

274001302

HOSE-EXHAUST

12

293650107

CLAMP-TRIDON

13

278001016

SENSOR-LIQUID

14

293800038

LOCTITE-518

15

293850036

STRAP-FUEL TANK

16

293850076

CLIP-STRAP 90

17

293150043

RIVET-POP 3/16

18

207284060

SCREW-HEX.CAP-DIN.931A2 S.GRIP

19

234082600

WASHER-FLAT DIN.9021B-A2

20

274001101

HOSE-EXHAUST STRAIGHT

21

293650107

CLAMP-TRIDON

22

293650064

CLAMP-TRIDON

23

274001045

RH. RESONATOR

24

278001940

BUSHING

25

274001102

HOSE-EXHAUST

26

293650064

CLAMP-TRIDON

27

274000843

OUTLET-EXHAUST

28

274000224

NUT-72MM

29

274000225

WASHER-STABILIZING

30

293250041

GASKET

31

296000309

SEAL-SILICONE

32

293800090

SEALANT
