純正パーツカタログよりご注文又はお見積

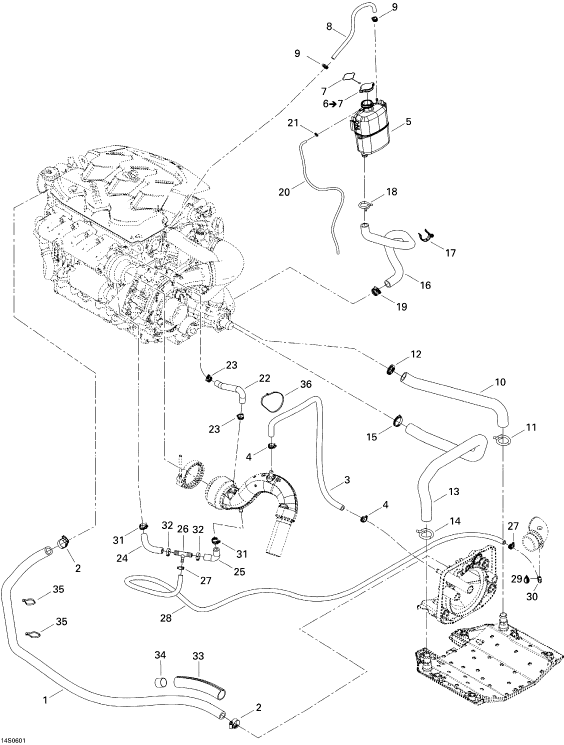

BRP　SEA DOO  2006年式  RXP215　216B/D ＞ クーリングシステム
>>セクション一覧    >>モデル一覧

見出番号

部品番号

部品名

数量

1

276000158

HOSE-19MM (PC=1M)

1

276000158

HOSE-19MM (PC=1M)

1

276000158

HOSE-19MM (PC=1M)

2

293650051

CLAMP-TRIDON

2

293650051

CLAMP-TRIDON

2

293650051

CLAMP-TRIDON

3

276000151

HOSE-12 5MM (PC=1M)

3

276000151

HOSE-12 5MM (PC=1M)

3

276000151

HOSE-12 5MM (PC=1M)

4

293650172

HOSE CLAMP

4

293650172

HOSE CLAMP

4

293650172

HOSE CLAMP

5

276000086

TANK-COOLANT

5

276000086

TANK-COOLANT

5

276000086

TANK-COOLANT

6

276000100

PRESSURE CAP ASSY

6

276000100

PRESSURE CAP ASSY

6

276000100

PRESSURE CAP ASSY

7

276000127

LATCH

7

276000127

LATCH

7

276000127

LATCH

8

275500549

HOSE-1/4 (10M/PAC)

8

275500549

HOSE-1/4 (10M/PAC)

8

275500549

HOSE-1/4 (10M/PAC)

9

293650170

HOSE CLAMP

9

293650170

HOSE CLAMP

9

293650170

HOSE CLAMP

10

276000120

HOSE-RIGHT

10

276000120

HOSE-RIGHT

10

276000120

HOSE-RIGHT

11

293650114

CLAMP-SPRING

11

293650114

CLAMP-SPRING

11

293650114

CLAMP-SPRING

12

293650045

CLAMP-TRIDON

12

293650045

CLAMP-TRIDON

12

293650045

CLAMP-TRIDON

13

276000145

HOSE-LEFT

13

276000145

HOSE-LEFT

13

276000145

HOSE-LEFT

14

293650114

CLAMP-SPRING

14

293650114

CLAMP-SPRING

14

293650114

CLAMP-SPRING

15

293650045

CLAMP-TRIDON

15

293650045

CLAMP-TRIDON

15

293650045

CLAMP-TRIDON

16

276000122

HOSE-MOLDED

16

276000122

HOSE-MOLDED

16

276000122

HOSE-MOLDED

17

275500526

RETAINER

17

275500526

RETAINER

17

275500526

RETAINER

18

293650115

CLAMP-SPRING

18

293650115

CLAMP-SPRING

18

293650115

CLAMP-SPRING

19

293650019

CLAMP-TRIDON

19

293650019

CLAMP-TRIDON

19

293650019

CLAMP-TRIDON

20

415080200

POLYURETHANE HOSE

20

415080200

POLYURETHANE HOSE

20

415080200

POLYURETHANE HOSE

21

293750001

TIE-RAP 94MM

21

293750001

TIE-RAP 94MM

21

293750001

TIE-RAP 94MM

22

276000155

HOSE-FORMED

22

276000155

HOSE-FORMED

22

276000155

HOSE-FORMED

23

293650172

HOSE CLAMP

23

293650172

HOSE CLAMP

23

293650172

HOSE CLAMP

24

276000160

HOSE-FORMED

24

276000160

HOSE-FORMED

24

276000160

HOSE-FORMED

25

276000161

HOSE-FORMED

25

276000161

HOSE-FORMED

25

276000161

HOSE-FORMED

26

293710025

FITTING-T

26

293710025

FITTING-T

26

293710025

FITTING-T

27

293650171

HOSE CLAMP

27

293650171

HOSE CLAMP

27

293650171

HOSE CLAMP

28

509000093

HOSE-8MM

28

509000093

HOSE-8MM

28

509000093

HOSE-8MM

29

293800013

SEALANT-PIPE

29

293800013

SEALANT-PIPE

29

293800013

SEALANT-PIPE

30

293700024

FITTING-ELBOW

30

293700024

FITTING-ELBOW

30

293700024

FITTING-ELBOW

31

293650172

HOSE CLAMP

31

293650172

HOSE CLAMP

31

293650172

HOSE CLAMP

32

293650173

HOSE CLAMP

32

293650173

HOSE CLAMP

32

293650173

HOSE CLAMP

33

409902200

TUBING-25MM

33

409902200

TUBING-25MM

33

409902200

TUBING-25MM

34

276000125

SHRINK TUBING

34

276000125

SHRINK TUBING

34

276000125

SHRINK TUBING

35

414115200

TIE-RAP 180MM

35

414115200

TIE-RAP 180MM

35

414115200

TIE-RAP 180MM

36

293750008

TIE-RAP 350MM

36

293750008

TIE-RAP 350MM

36

293750008

TIE-RAP 350MM
