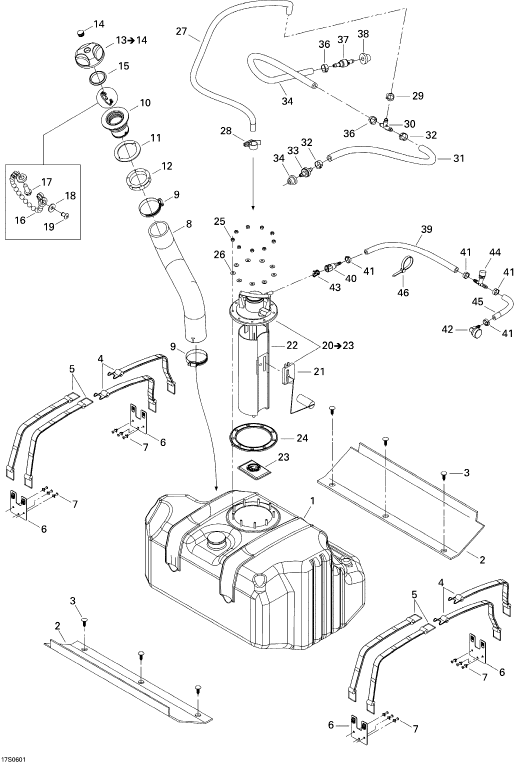

1

275500675

TANK-FUEL

2

293830094

PAD-RUBBER

3

293730011

DART-BLACK

4

293850067

STRAP-FUEL TANK

5

293850038

STRAP

6

293850066

CLIP-STRAP

7

293150043

RIVET-POP 3/16

8

275500605

HOSE-FIL.NECK

9

293650023

CLAMP-TRIDON

10

275500231

NECK-FILLER

11

293250029

GASKET

12

211100012

NUT-NECK FILLER FUEL

13

275500430

CAP-FUEL SUB

14

293000034

CAP-SNAP BLACK

15

293250075

GASKET

16

275500518

CHAIN-CAP FUEL

17

234032600

WASHER-FLAT DIN.9021B-A2

18

390407900

RIVET-POP 1/8

19

241140060

SCREW-PT.HEX.FLANGE K40 X 10

20

270600056

PUMP MODULE

21

270600051

LEVER-SENSOR

23

219700368

BOSCH SERVICE FILTER

24

293250088

GASKET

25

232551200

NUT-STOP ELASTIC DIN.985

26

234052600

WASHER-FLAT DIN.9021B-A2

27

275500549

HOSE-1/4 (10M/PAC)

28

293650170

HOSE CLAMP

29

293650025

CLAMP-OETIKER

30

293710059

FITTING-Y

31

275500549

HOSE-1/4 (10M/PAC)

32

293650025

CLAMP-OETIKER

33

275500398

VALVE-CHECK

34

293720029

GROMMET

35

275500549

HOSE-1/4 (10M/PAC)

36

293650025

CLAMP-OETIKER

37

275500505

VALVE-CHECK

38

293720029

GROMMET

39

275500626

HOSE-5/16

40

275500428

CONNECTOR-BOX

41

293650011

CLAMP-OETIKER

42

293710105

FITTING-ELBOW

43

275500429

CONNECTOR-STOPPER

44

293710112

BLEED VALVE

45

275500626

HOSE-5/16

46

414115200

TIE-RAP 180MM
