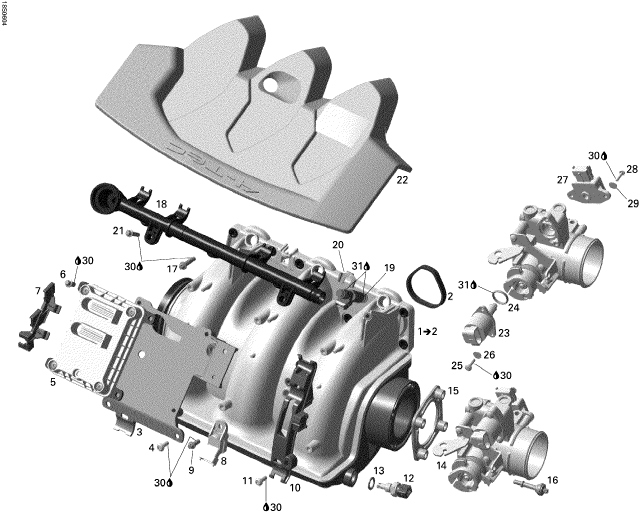

1

420867921

AIR INTAKE MANIFOLD

2

420950740

GASKET

3

420851521

BASE PLATE

4

420440167

SCREW-TORX FLANGE

5

420664136

ELECTRONIC BOX

6

420641583

TORX FLANGE SCREW

7

420660402

CONNECTOR BRACKET

8

420274055

TEMPERATURE SENSOR

9

420440167

SCREW-TORX FLANGE

10

420660410

WIRING SUPPORT

11

420641583

TORX FLANGE SCREW

12

420222429

TEMPERATURE SENSOR

13

420250015

ALUMINUM WASHER

14

420889024

THROTTLE BODY SOCKET ASSY

15

420950792

RUBBER GASKET

16

420440567

SCREW

17

420440237

SCREW-TORX FLANGE

18

420874391

FUEL RAIL ASSY.

19

420874430

INJECTOR

20

420851531

INJECTOR CLIP

21

420440237

SCREW-TORX FLANGE

23

420963050

IDLE BYPASS VALVE

24

420631780

O RING

25

420440911

BINDING HEAD SCREW 4-5 NM

26

420845710

SNAP RING

27

270000251

SENSOR-THROTTL

28

420440911

BINDING HEAD SCREW 4-5 NM

29

420845710

SNAP RING

30

293800060

LOCTITE-243

31

219700346

4 STROKE OIL 10W-40
