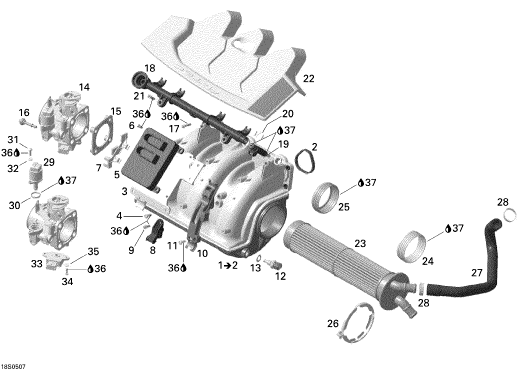

1

420867955

INDUCTION MANIFOLD-BV

2

420950740

GASKET

3

420851521

BASE PLATE

4

420641048

TORX FLANGE SCREW

5

420664947

ELECTRONIC BOX

6

420641583

TORX FLANGE SCREW

7

420660402

CONNECTOR BRACKET

8

420274057

PRESSURE SENSOR

9

420641048

TORX FLANGE SCREW

10

420660410

WIRING SUPPORT

11

420641583

TORX FLANGE SCREW

12

420222427

TEMPERATURE SENSOR

13

420250015

ALUMINUM WASHER

14

420889023

THROTTLE BODY SOCKET ASSY.

15

420950792

RUBBER GASKET

16

420440560

SCREW-TORX

17

420641238

SCREW-TORX FLANGE

18

420874391

FUEL RAIL ASSY.

19

420874520

FUEL INJECTOR

20

420851531

INJECTOR CLIP

21

420641238

SCREW-TORX FLANGE

22

270000654

COVER ASSY

23

420889651

INTERCOOLER

24

420631990

PROFILE RING

25

420631995

PROFILE RING

26

420853253

GEAR CLAMP

27

420822170

FORM HOSE

28

420851673

GEAR CLAMP

29

420963050

IDLE BYPASS VALVE

30

420631780

O RING

33

270000251

SENSOR-THROTTL

36

293800060

LOCTITE-243

37

219700346

4 STROKE OIL 10W-40
