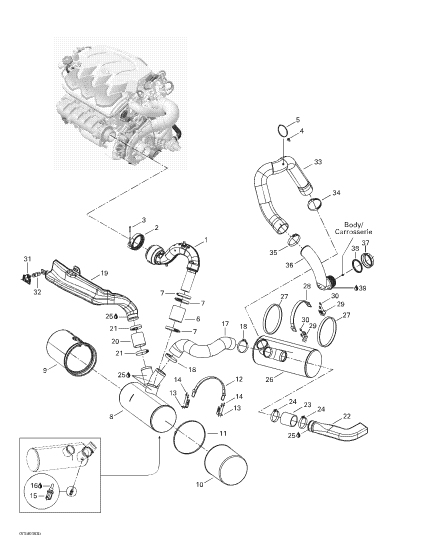

1

274001049

EXHAUST PIPE

2

274000959

EXHAUST CLAMP

3

415080200

POLYURETHANE HOSE

4

293730018

DART-MOUNT

5

293750008

TIE-RAP 350MM

6

274000961

HOSE-EXHAUST

7

293650006

CLAMP-TRIDON

8

274000982

MUFFLER

9

274001008

MUFFLER COVER

10

274000984

COVER-MUFFLER

11

293750020

TIE-RAP 838MM

12

293850021

STRAP-RUBBER

13

293850076

CLIP-STRAP 90

14

293150037

RIVET-AVDEL 3/16

15

278001016

SENSOR-LIQUID

16

293800038

LOCTITE-518

17

274001013

EXHAUST HOSE

18

293650107

CLAMP-TRIDON

19

274000993

LH. RESONATOR

20

274001014

EXHAUST HOSE

21

293650107

CLAMP-TRIDON

22

274000994

RH. RESONATOR

23

274001014

EXHAUST HOSE

24

293650107

CLAMP-TRIDON

25

293800090

SEALANT

26

274000988

MUFFLER-PAINTED

27

293830034

STRIP-RUBBER

28

293850021

STRAP-RUBBER

29

293850076

CLIP-STRAP 90

30

293150037

RIVET-AVDEL 3/16

31

291001352

TIE-RESONATOR

32

293830062

PAD-RUBBER

33

274001015

EXHAUST HOSE

34

293650107

CLAMP-TRIDON

35

293650006

CLAMP-TRIDON

36

274000901

OUTLET-EXHAUST

37

274000224

NUT-72MM

38

274000225

WASHER-STABILIZING

39

296000309

SEAL-SILICONE
