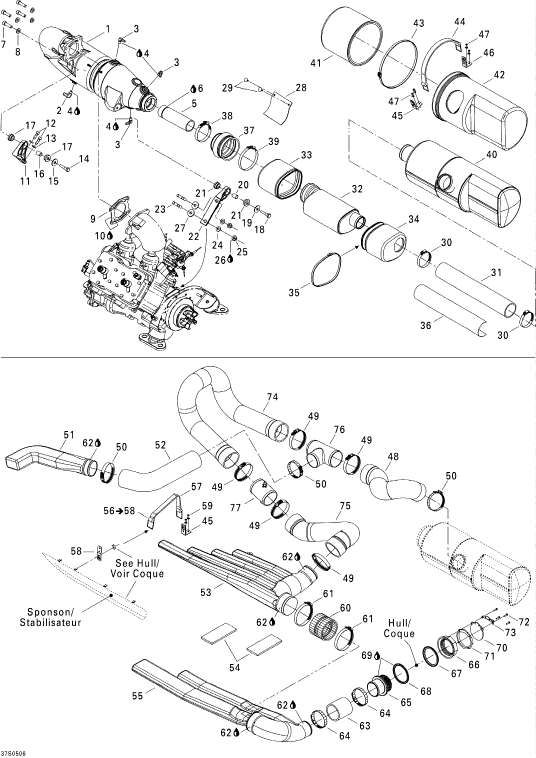

1

274001189

PIPE-HEAD

2

293700023

FITTING-ELBOW

3

293700024

FITTING-ELBOW

4

293800018

SEALANT-PIPE

5

274001236

THREADED TUBE

6

413711400

LOCTITE-648

7

244003560

SCREW-SOCKET DIN.912A2 S.GRIP

8

234001600

WASHER-FLAT DIN.125A-A2

9

420931503

EXHAUST GASKET

10

293800038

LOCTITE-518

11

274001129

SUPP-PIPE

12

205582560

SCREW-SOCKET

13

293050001

WASHER-8MM

14

245004060

SCREW-HEX.CAP-DIN.931A2 S.GRIP

15

234002600

WASHER-FLAT DIN.9021B-A2

16

274000861

BUSHING

17

293830065

BUSHING-RUBBER

18

245004060

SCREW-HEX.CAP-DIN.931A2 S.GRIP

19

234002600

WASHER-FLAT DIN.9021B-A2

20

274000861

BUSHING

21

293830065

BUSHING-RUBBER

22

274001131

SUPP-PIPE

23

250300007

STUD-M10X60

24

234001600

WASHER-FLAT DIN.125A-A2

25

233101600

NUT-FLANGE HEXAGONAL

26

293800060

LOCTITE-243

27

234002600

WASHER-FLAT DIN.9021B-A2

28

293830109

PAD-RUBBER

29

293730011

DART-BLACK

30

293650064

CLAMP-TRIDON

31

274001208

HOSE-EXHAUST

32

274001196

MUFFLER-WELD

33

274001197

34

274001198

35

293750020

TIE-RAP 838MM

36

274001225

HEAT SHIELD

37

274001116

EXHAUST BELLOW

38

293650168

CLAMP-TRIDON

39

293650169

CLAMP-TRIDON

40

274001203

MUFFLER-WELD

41

274001192

COVER-MUFFLER

42

274001072

COVER-MUFFLER

43

293750020

TIE-RAP 838MM

44

293850036

STRAP-FUEL TANK

45

293850076

CLIP-STRAP 90

46

293850075

CLIP-STRAP 90

47

293150037

RIVET-AVDEL 3/16

48

274001178

HOSE-EXHAUST

49

293650107

CLAMP-TRIDON

50

293650064

CLAMP-TRIDON

51

274000994

RH. RESONATOR

52

274001179

HOSE

53

274000700

RESONATOR-LH.

54

274000752

PAD-RUBBER

55

274000701

RESONATOR-LH.

56

293850082

STRAP ASSY

57

293850036

STRAP-FUEL TANK

58

293850030

CLIP-STRAP

59

293150037

RIVET-AVDEL 3/16

60

274000726

HOSE-EXHAUST

61

204000079

CLAMP-TRIDON

62

293800090

SEALANT

63

274000616

HOSE-EXHAUST

64

293650064

CLAMP-TRIDON

65

274000843

OUTLET-EXHAUST

66

274000835

NUT-72MM

67

274000225

WASHER-STABILIZING

68

293250041

GASKET

69

296000309

SEAL-SILICONE

70

293250107

GASKET

71

274000892

NUT-SUPPORT

72

241141660

SCREW-PT.HEX.FLANGE K40 X 16

73

274000885

BRACKET

74

274001180

HOSE-EXHAUST

75

274001181

HOSE-EXHAUST

76

274001080

T- FITTING

77

274001081

HOSE ADAPTER
