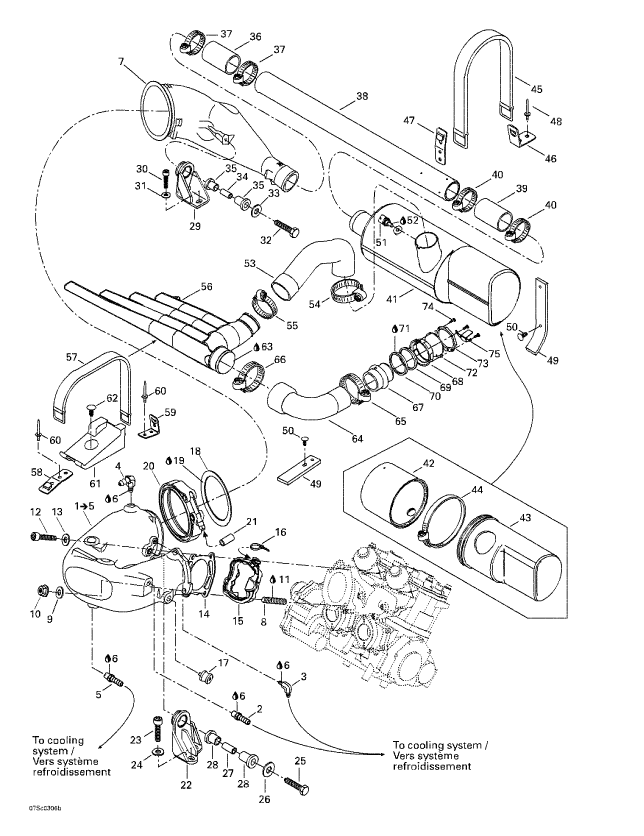

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
274000927 |
PIPE-HEAD
|
|
2 |
293710037 |
CONNECTOR-MALE
|
|
3 |
293710048 |
FITTING-ELBOW
|
|
4 |
293700016 |
FITTING-ELBOW
|
|
5 |
293710021 |
CONNECTOR-MALE
|
|
6 |
293800013 |
SEALANT-PIPE
|
|
7 |
274000658 |
CONE-EXHAUST
|
|
8 |
250300008 |
STUD-M10X55
|
|
9 |
211200051 |
WASHER-FLAT
|
|
10 |
233101600 |
NUT-FLANGE HEXAGONAL
|
|
11 |
293800060 |
LOCTITE-243
|
|
12 |
244003560 |
SCREW-SOCKET DIN.912A2 S.GRIP
|
|
13 |
211200051 |
WASHER-FLAT
|
|
14 |
420931990 |
GASKET
|
|
15 |
274000862 |
ENV-PICK UP
|
|
16 |
293750002 |
TIE-RAP 130MM
|
|
17 |
274000839 |
ISOLATOR
|
|
18 |
274000511 |
RING-SEALING
|
|
19 |
293800090 |
SEALANT
|
|
20 |
274000510 |
CLAMP-EXHAUST
|
|
21 |
275000007 |
HOSE-8MM.(10M/PAC)
|
|
22 |
274000890 |
SUPP-PIPE
|
|
23 |
244083060 |
SCREW-SOCKET DIN.912A2 S.GRIP
|
|
24 |
250200012 |
WASHER-FLAT M8.4
|
|
25 |
245004060 |
SCREW-HEX.CAP-DIN.931A2 S.GRIP
|
|
26 |
234002600 |
WASHER-FLAT DIN.9021B-A2
|
|
27 |
274000861 |
BUSHING
|
|
28 |
293830065 |
BUSHING-RUBBER
|
|
29 |
274000777 |
SUPPORT-PIPE
|
|
30 |
244083060 |
SCREW-SOCKET DIN.912A2 S.GRIP
|
|
31 |
250200012 |
WASHER-FLAT M8.4
|
|
32 |
244004060 |
SCREW-SOCKET DIN.912A2 S.GRIP
|
|
33 |
234002600 |
WASHER-FLAT DIN.9021B-A2
|
|
34 |
274000861 |
BUSHING
|
|
35 |
293830065 |
BUSHING-RUBBER
|
|
36 |
274000896 |
HOSE-EXHAUST
|
|
37 |
293650064 |
CLAMP-TRIDON
|
|
38 |
274000948 |
TUBE-EXP.
|
|
39 |
274000896 |
HOSE-EXHAUST
|
|
40 |
293650064 |
CLAMP-TRIDON
|
|
41 |
274001053 |
MUFFLER
|
|
42 |
274000811 |
COVER-MUFFLER
|
|
43 |
274000812 |
COVER-MUFFLER
|
|
44 |
293750020 |
TIE-RAP 838MM
|
|
45 |
293850021 |
STRAP-RUBBER
|
|
46 |
293850076 |
CLIP-STRAP 90
|
|
47 |
293850024 |
CLIP-STRAP
|
|
48 |
293150037 |
RIVET-AVDEL 3/16
|
|
49 |
293830089 |
PAD-RUBBER
|
|
50 |
414644300 |
DART-WINDSHIELD
|
|
51 |
278001016 |
SENSOR-LIQUID
|
|
52 |
293800038 |
LOCTITE-518
|
|
53 |
274001055 |
EXHAUST HOSE
|
|
54 |
293650064 |
CLAMP-TRIDON
|
|
55 |
293650107 |
CLAMP-TRIDON
|
|
56 |
274000700 |
RESONATOR-LH.
|
|
57 |
293850026 |
STRAP-FUEL TANK
|
|
58 |
293850024 |
CLIP-STRAP
|
|
59 |
293850076 |
CLIP-STRAP 90
|
|
60 |
293150037 |
RIVET-AVDEL 3/16
|
|
62 |
293730006 |
DART-BLACK
|
|
63 |
293800090 |
SEALANT
|
|
64 |
274000784 |
HOSE-ADAPTER
|
|
65 |
293650064 |
CLAMP-TRIDON
|
|
66 |
204000079 |
CLAMP-TRIDON
|
|
67 |
274000843 |
OUTLET-EXHAUST
|
|
68 |
274000835 |
NUT-72MM
|
|
69 |
274000225 |
WASHER-STABILIZING
|
|
70 |
293250041 |
GASKET
|
|
71 |
296000309 |
SEAL-SILICONE
|
|
72 |
293250107 |
GASKET
|
|
73 |
274000892 |
NUT-SUPPORT
|
|
74 |
241141660 |
SCREW-PT.HEX.FLANGE K40 X 16
|
|
75 |
274000885 |
BRACKET
|
|
