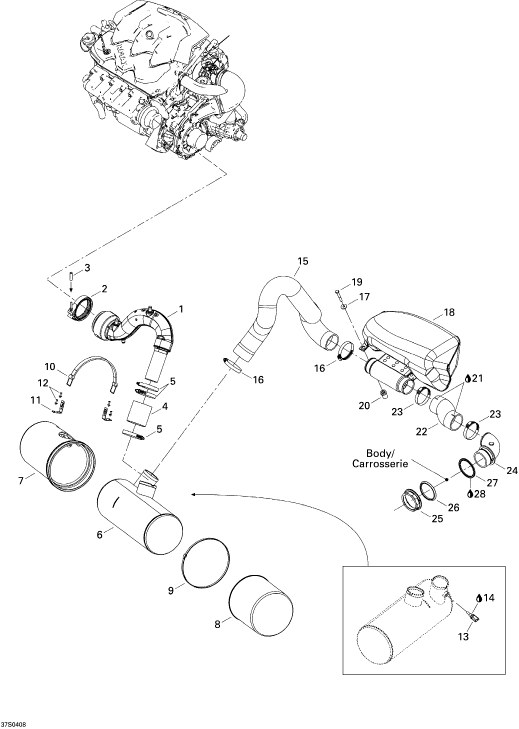

1

274001049

EXHAUST PIPE

2

274000959

EXHAUST CLAMP

3

415080200

POLYURETHANE HOSE

4

274000961

HOSE-EXHAUST

5

293650107

CLAMP-TRIDON

6

274001095

MUFFLER

7

274001008

MUFFLER COVER

8

274000984

COVER-MUFFLER

9

293750020

TIE-RAP 838MM

10

293850036

STRAP-FUEL TANK

11

293850076

CLIP-STRAP 90

12

293150037

RIVET-AVDEL 3/16

13

278001016

SENSOR-LIQUID

14

293800038

LOCTITE-518

15

274000987

HOSE-EXHAUST

16

293650107

CLAMP-TRIDON

17

234082600

WASHER-FLAT DIN.9021B-A2

18

274001045

RH. RESONATOR

19

250000187

SCREW-HEX.CAP DIN.931A2 S.GRIP

20

278001939

BUSHING

21

293800090

SEALANT

22

274000991

HOSE-EXHAUST

23

293650107

CLAMP-TRIDON

24

274000542

OUTLET-EXHAUST

25

274000224

NUT-72MM

26

274000225

WASHER-STABILIZING

27

293250041

GASKET

28

296000309

SEAL-SILICONE

29

293800090

SEALANT
