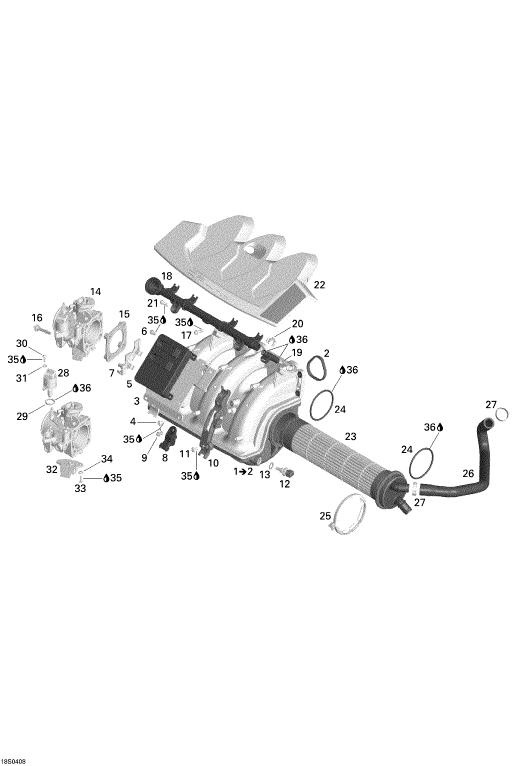

1

420867955

INDUCTION MANIFOLD-BV

2

420950740

GASKET

3

420851521

BASE PLATE

4

420641048

TORX FLANGE SCREW

5

420664942

ELECTRONIC BOX

6

420641583

TORX FLANGE SCREW

7

420660402

CONNECTOR BRACKET

8

420274057

PRESSURE SENSOR

9

420641048

TORX FLANGE SCREW

10

420660410

WIRING SUPPORT

11

420641583

TORX FLANGE SCREW

12

420222427

TEMPERATURE SENSOR

13

420250015

ALUMINUM WASHER

14

420889023

THROTTLE BODY SOCKET ASSY.

15

420950792

RUBBER GASKET

16

420440560

SCREW-TORX

17

420641238

SCREW-TORX FLANGE

18

420874391

FUEL RAIL ASSY.

19

420874520

FUEL INJECTOR

20

420851531

INJECTOR CLIP

21

420641238

SCREW-TORX FLANGE

22

420660178

COVER

23

420889650

INTERCOOLER

24

420631900

O RING

25

420853253

GEAR CLAMP

26

420822170

FORM HOSE

27

420851673

GEAR CLAMP

28

420963050

IDLE BYPASS VALVE

29

420631780

O RING

30

420440911

BINDING HEAD SCREW 4-5 NM

31

420845710

SNAP RING

32

270000251

SENSOR-THROTTL

33

208641660

SCREW-PAN HD.PH.DIN.7985A-A2

34

234042600

WASHER-FLAT DIN.9021B-A2

35

293800060

LOCTITE-243

36

219700346

4 STROKE OIL 10W-40
