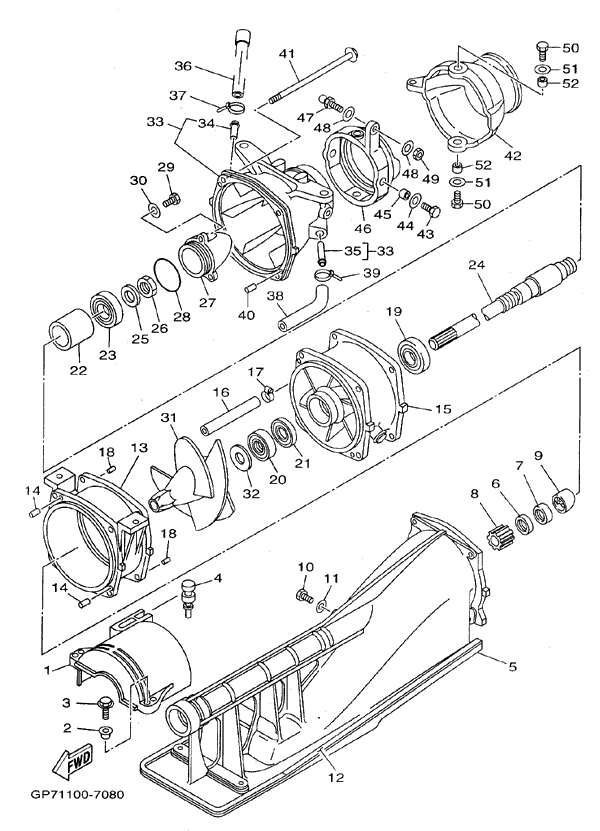

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
65A-R1381-00 |
【販売終了】COVER
YMUS
|
|
2 |
90387-06M60 |
COLLAR
|
|
3 |
97595-06525 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
4 |
90480-06M46 |
ｸﾞﾛﾒﾂﾄ
|
|
5 |
65V-51311-00-94 |
【販売終了】DUCT, INTAKE
|
|
6 |
93102-17M49 |
ｵｲﾙ ｼ-ﾙ
|
|
7 |
93102-17M50 |
ｵｲﾙ ｼ-ﾙ
|
|
8 |
65V-45318-00 |
BUSHING, DRIVE SHAFT
|
|
9 |
65V-51348-01-94 |
SPACER
|
|
10 |
97095-06025 |
ﾎﾞﾙﾄ
|
|
11 |
92995-06600 |
ﾜﾂｼﾔ
|
|
12 |
6R8-51367-01 |
FELT, PACKING
|
|
13 |
6R8-51312-02-94 |
HOUSING, IMPELLER
|
|
14 |
93606-12019 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
15 |
62T-51315-01-94 |
ﾀﾞｸﾄ,ｲﾝﾍﾟﾗ
|
|
16 |
90445-14M17 |
HOSE (L102)
|
|
17 |
90450-14M05 |
ﾎ-ｽｸﾗﾝﾌﾟｱｾﾝﾌﾞﾘ
|
|
18 |
93606-12019 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
19 |
93306-205U0 |
ﾍﾞｱﾘﾝｸﾞ
|
|
20 |
93102-25M34 |
ｵｲﾙｼ-ﾙ
|
|
21 |
93101-25M50 |
ｵｲﾙｼ-ﾙ
|
|
22 |
65V-45538-00 |
SPACER 1
|
|
23 |
93306-304U1 |
ﾍﾞｱﾘﾝｸﾞ
|
|
24 |
65V-45511-00 |
【販売終了】SHAFT, DRIVE
|
|
25 |
92990-16600 |
ﾜﾂｼﾔ
|
|
26 |
95317-16700 |
ﾅﾂﾄ
|
|
27 |
62T-51326-00 |
CAP
|
|
28 |
93210-46M16 |
O-ﾘﾝｸﾞ
|
|
29 |
97095-06016 |
ﾎﾞﾙﾄ
|
|
30 |
92995-06600 |
ﾜﾂｼﾔ
|
|
31 |
65V-51321-00 |
IMPELLER
|
|
32 |
62T-51348-00 |
ｽﾍﾟ-ｻ
|
|
33 |
65V-51318-00-94 |
NOZZLE
|
|
34 |
6K8-51129-00 |
ﾆﾂﾌﾟﾙ
|
|
35 |
62T-51129-00 |
ﾆﾂﾌﾟﾙ
|
|
36 |
61X-51673-00 |
PIPE 1
|
|
37 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
38 |
90445-14M24 |
ﾎ-ｽ(L260)
|
|
39 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
40 |
93606-12019 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
41 |
90101-06M04 |
BOLT
|
|
42 |
65V-51313-00 |
NOZZLE,DEFLECTOR
|
|
43 |
97095-08018 |
ﾎﾞﾙﾄ
|
|
44 |
92995-08600 |
ﾜﾂｼﾔ
|
|
45 |
90387-08M08 |
ｶﾗ-
|
|
46 |
64Y-51190-00-94 |
RING,TRIM
|
|
47 |
6R7-42316-00 |
BOLT, JOINT
|
|
48 |
90201-06M31 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
49 |
95380-06700 |
ﾅﾂﾄ
|
|
50 |
97095-08020 |
ﾎﾞﾙﾄ
|
|
51 |
92995-08600 |
ﾜﾂｼﾔ
|
|
52 |
90387-08M06 |
ｶﾗ-
|
|
|
