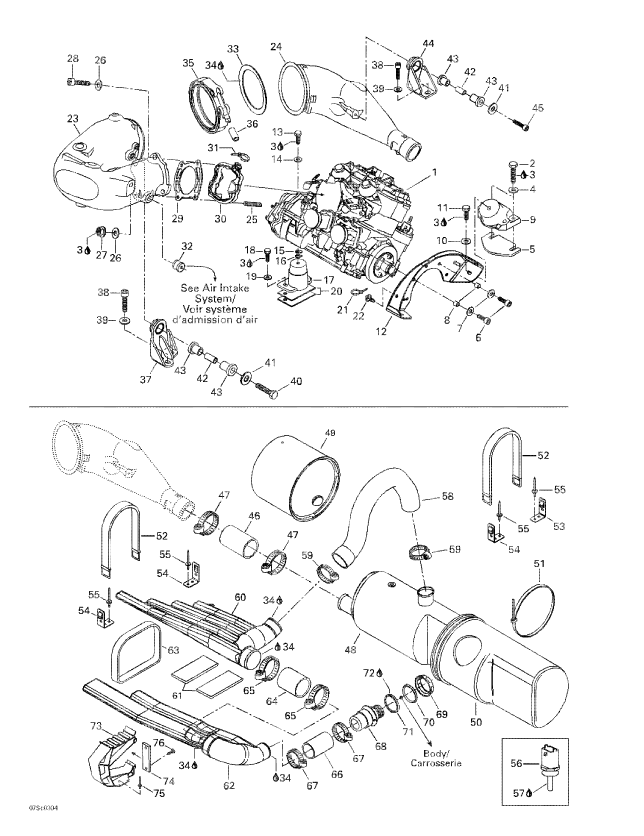

1

270000536

2

207184060

SCREW-HEX.CAP DIN.933A2

3

293800060

LOCTITE-243

4

234081600

WASHER-FLAT DIN.125A-A2

5

270000122

SHIM- 0-3MM

5

270000123

SHIM- 1-3MM

6

205582560

SCREW-SOCKET

7

234081600

WASHER-FLAT DIN.125A-A2

8

270000453

BUSHING

9

270000421

MOUNT-RUBBER

10

234082600

WASHER-FLAT DIN.9021B-A2

11

207181660

SCREW-HEX.CAP DIN.933A2

12

270000515

SUPPORT-ENGINE

13

207182060

SCREW-HEX.CAP DIN.933A2

14

234082600

WASHER-FLAT DIN.9021B-A2

15

270000025

SHIM- 1-3MM

16

270000024

SHIM- 0-4MM

17

270000422

MOUNT-RUBBER

18

207184060

SCREW-HEX.CAP DIN.933A2

19

234081600

WASHER-FLAT DIN.125A-A2

20

270000122

SHIM- 0-3MM

20

270000123

SHIM- 1-3MM

21

414115200

TIE-RAP 180MM

22

293730018

DART-MOUNT

23

274000927

PIPE-HEAD

24

274000871

CONE-EXHAUST

25

250300008

STUD-M10X55

26

211200051

WASHER-FLAT

27

233101600

NUT-FLANGE HEXAGONAL

28

244003560

SCREW-SOCKET DIN.912A2 S.GRIP

29

420931990

GASKET

30

274000862

ENV-PICK UP

31

293750002

TIE-RAP 130MM

32

274000839

ISOLATOR

33

274000511

RING-SEALING

34

293800090

SEALANT

35

274000510

CLAMP-EXHAUST

36

275000007

HOSE-8MM.(10M/PAC)

37

274000890

SUPP-PIPE

38

244083060

SCREW-SOCKET DIN.912A2 S.GRIP

39

250200012

WASHER-FLAT M8.4

40

245004060

SCREW-HEX.CAP-DIN.931A2 S.GRIP

41

234002600

WASHER-FLAT DIN.9021B-A2

42

274000861

BUSHING

43

293830065

BUSHING-RUBBER

44

274000777

SUPPORT-PIPE

45

244004060

SCREW-SOCKET DIN.912A2 S.GRIP

46

274000896

HOSE-EXHAUST

47

293650064

CLAMP-TRIDON

48

274000826

MUFFLER

49

274000796

COVER-MUFFLER

50

274000799

COVER-MUFFLER

51

293750020

TIE-RAP 838MM

52

293850036

STRAP-FUEL TANK

53

293850076

CLIP-STRAP 90

54

293850075

CLIP-STRAP 90

55

293150037

RIVET-AVDEL 3/16

56

278001016

SENSOR-LIQUID

57

293800038

LOCTITE-518

58

274000834

HOSE-EXHAUST

59

293650107

CLAMP-TRIDON

60

274000700

RESONATOR-LH.

61

274000752

PAD-RUBBER

62

274000701

RESONATOR-LH.

63

293830034

STRIP-RUBBER

64

274000726

HOSE-EXHAUST

65

204000079

CLAMP-TRIDON

66

274000616

HOSE-EXHAUST

67

293650064

CLAMP-TRIDON

68

274000843

OUTLET-EXHAUST

69

274000224

NUT-72MM

70

274000225

WASHER-STABILIZING

71

293250041

GASKET

72

296000309

SEAL-SILICONE

73

292000819

POLE-LH

74

292000820

PLATE-SUPPORT

75

293150037

RIVET-AVDEL 3/16

76

211000021

SCREW-TRI.PLASK PAN.HD.PHIL.
