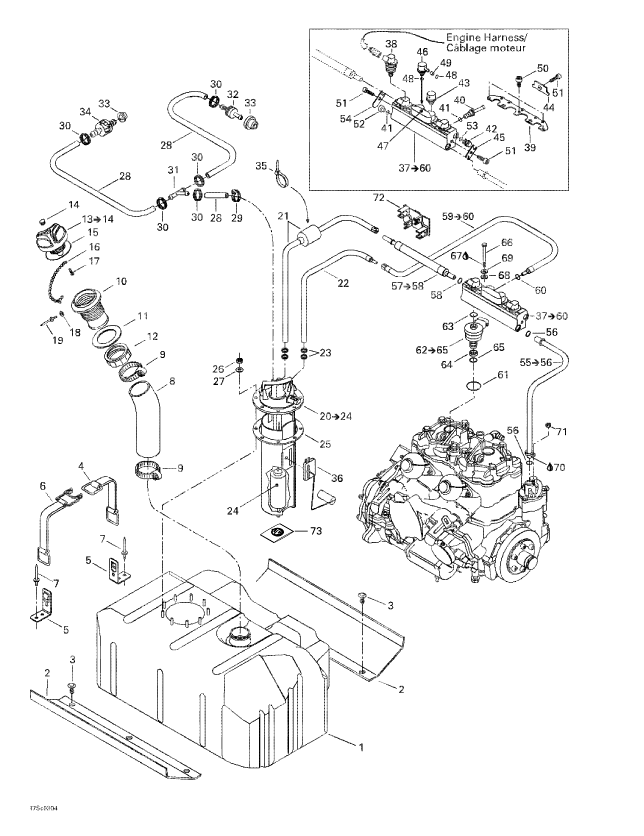

見出番号
部品番号
部品名
数量
1
275500427
TANK-FUEL
2
293830077
PAD-RUBBER
3
293730006
DART-BLACK
4
293850036
STRAP-FUEL TANK
5
293850076
CLIP-STRAP 90
6
293850038
STRAP
7
293150037
RIVET-AVDEL 3/16
8
275500539
HOSE-FIL NECK
9
293650023
CLAMP-TRIDON
10
275500231
NECK-FILLER
11
293250029
GASKET
12
211100012
NUT-NECK FILLER FUEL
13
275500430
CAP-FUEL SUB
14
293000034
CAP-SNAP BLACK
15
293250075
16
275500518
CHAIN-CAP FUEL
17
241140060
SCREW-PT.HEX.FLANGE K40 X 10
18
234032600
WASHER-FLAT DIN.9021B-A2
19
390407900
RIVET-POP 1/8
20
275500540
MODULE-FUEL ASS Y
21
275500559
HOSE-ASSY
23
293650140
CLAMP-OETIKER 162
25
293250088
26
232551200
NUT-STOP ELASTIC DIN.985
27
234052400
WASHER-FLAT DIN.7349
28
275500549
HOSE-1/4 (10M/PAC)
29
293650128
HOSE CLAMP
30
293650050
CLAMP-CLIC
31
293710059
FITTING-Y
32
275500398
VALVE-CHECK
33
293720029
GROMMET
34
275500505
35
293750008
TIE-RAP 350MM
36
270600012
LEVEL-SENSOR
37
275500614
DISTRIBUTOR-FUEL
38
275500460
INJECTOR-FUEL
39
275500543
PLATE-RETAINNER
40
275500538
ADAPTER-AIR
41
293300069
RING-O
42
275500595
FUEL PLUG
43
275500463
REGULATOR-AIR
44
275500456
45
275500596
RETAINER PLATE
46
275500464
REGULATOR-FUEL
47
275500449
COVER
48
293300072
49
275500465
SPACER
50
205051260
SCREW-SOCKET HD.DIN.912A2
51
205061260
52
275500597
AIR PLUG
53
275500598
O-RING
54
275500455
55
270600022
HOSE-PRESSURE
56
293300070
57
275500557
HOSE-ASS Y
58
59
275500558
60
61
293300083
62
275500545
INJECTOR-AIR
63
293300084
64
270600030
RING-INJECTOR
65
293300076
66
207087060
SCREW-HEX.CAP DIN.931A2
67
293800060
LOCTITE-243
68
234081600
WASHER-FLAT DIN.125A-A2
69
234181601
WASHER-LOCK HELICAL
70
293800070
LOCT-ANTISEIZE
71
232561600
NUT-STOP ELASTIC DIN.985-A2
72
291001399
TIE-CLAMP
73
219700368
BOSCH SERVICE FILTER
