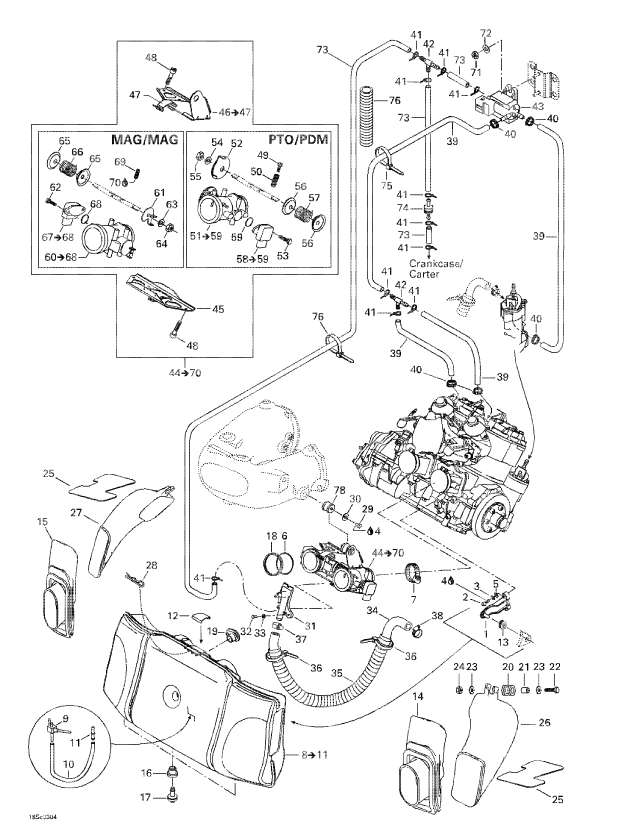

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
273000123 |
SUPP.SILENC
|
|
2 |
205063560 |
SCREW-SOCKET HD.DIN.912A2
|
|
3 |
234061600 |
WASHER-FLAT DIN125A-A2
|
|
4 |
293800060 |
LOCTITE-243
|
|
5 |
234161601 |
WASHER-LOCK HELICAL DIN.127B-A
|
|
6 |
293250065 |
RING-O
|
|
7 |
293650079 |
CLAMP-NORMA
|
|
8 |
273000209 |
SILENCER-AIR
|
|
10 |
415080100 |
LINE-PRIMER(30M/PAC)
|
|
11 |
273000181 |
CONNECTOR
|
|
12 |
273000204 |
PLATE-SUPPORT
|
|
13 |
293720052 |
GROMMET-CABLE
|
|
14 |
273000163 |
ADAPTOR-INTAKE
|
|
15 |
273000164 |
ADAPTOR-INTAKE
|
|
16 |
293720064 |
GROMMET
|
|
17 |
275500454 |
VALVE-CHECK
|
|
18 |
293250122 |
GASKET
|
|
19 |
270600024 |
ADAPTOR-FEMALE
|
|
20 |
278001260 |
INSULATOR
|
|
21 |
272000074 |
SPACER
|
|
22 |
207063560 |
SCREW-HEX.CAP DIN.931A2
|
|
23 |
234062600 |
WASHER-FLAT DIN.9021B-A2
|
|
24 |
232561600 |
NUT-STOP ELASTIC DIN.985-A2
|
|
25 |
273000165 |
PAD-PROTECTOR
|
|
26 |
273000151 |
DUCT-AIR HIGH
|
|
27 |
273000150 |
DUCT-AIR HIGH
|
|
28 |
250400015 |
PIN-HAIR
|
|
29 |
207181260 |
SCREW-HEX.CAP DIN.933A2
|
|
30 |
234082600 |
WASHER-FLAT DIN.9021B-A2
|
|
31 |
270600023 |
ADDAPTOR-ADM.
|
|
32 |
207341260 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
|
|
33 |
234042600 |
WASHER-FLAT DIN.9021B-A2
|
|
34 |
270600021 |
HOSE-INTAKE
|
|
35 |
415116600 |
SHIELD-PROTEC.(1M/PAC)
|
|
36 |
293750002 |
TIE-RAP 130MM
|
|
37 |
293650130 |
HOSE-CLAMP
|
|
38 |
293650131 |
HOSE CLAMP
|
|
39 |
270000471 |
HOSE-4.3MM(5M/PAC)
|
|
40 |
293650100 |
CLAMP-OETIKER
|
|
41 |
293750001 |
TIE-RAP 94MM
|
|
42 |
293710068 |
FITTING-T
|
|
43 |
270600044 |
VALVE-SOLENOID
|
|
44 |
270600058 |
THROTTLE BODY TWIN BORE
|
|
45 |
270600069 |
SUPPORT-LOWER
|
|
46 |
270600070 |
SUPPORT-ASS Y
|
|
47 |
270600073 |
BRACKET-LATCH
|
|
48 |
205051060 |
SCREW-SOCKET HD.DIN.912A2
|
|
49 |
270600074 |
ADJUSTER-SCREW
|
|
50 |
270600075 |
SPRING
|
|
51 |
270600076 |
BODY-THROTTLE
|
|
52 |
270600077 |
LEVER-THROT.AS
|
|
53 |
270600078 |
SCREW-POTENTIOMETER M4
|
|
54 |
234161601 |
WASHER-LOCK HELICAL DIN.127B-A
|
|
55 |
232061600 |
NUT-HEXAGONAL DIN.934A2
|
|
56 |
270600079 |
SPRING-GUIDE
|
|
57 |
270600080 |
SPRING
|
|
58 |
270000251 |
SENSOR-THROTTL
|
|
59 |
270000544 |
O-RING
|
|
60 |
270600081 |
BODY-THROTTLE
|
|
61 |
270600082 |
LEVER-PICK-UP
|
|
62 |
270600078 |
SCREW-POTENTIOMETER M4
|
|
63 |
234161601 |
WASHER-LOCK HELICAL DIN.127B-A
|
|
64 |
232061600 |
NUT-HEXAGONAL DIN.934A2
|
|
65 |
270600079 |
SPRING-GUIDE
|
|
66 |
270600083 |
SPRING
|
|
67 |
270000251 |
SENSOR-THROTTL
|
|
68 |
270000544 |
O-RING
|
|
69 |
270600084 |
IDLE-SCREW
|
|
70 |
270600085 |
COVER
|
|
71 |
232551600 |
NUT-STOP ELASTIC DIN.985A2
|
|
72 |
234051600 |
WASHER-FLAT 125A-A2
|
|
73 |
270000374 |
HOSE-4.3MM(15M/PAC)
|
|
74 |
275500398 |
VALVE-CHECK
|
|
75 |
293750002 |
TIE-RAP 130MM
|
|
76 |
293100011 |
TUBING-PVC(1M/PAC)
|
|
77 |
414115200 |
TIE-RAP 180MM
|
|
78 |
274000839 |
ISOLATOR
|
|
