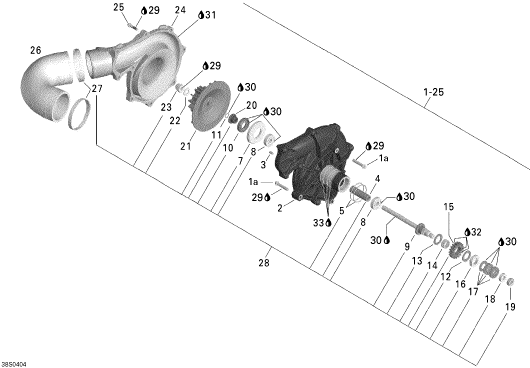

1

420881938

SUPERCHARGER BV

1a

420641258

SCREW TORX FLANGE M6 X 35

2

420867165

COMPRESSOR BASE PLATE

3

420929650

PIN-DRIVE 5X10

5

420650270

O-RING

7

420926392

THRUST WASHER

8

420832710

BALL BEARING

10

420950940

OIL SEAL ATS

11

420950950

O RING

14

420632430

NEEDLE PIN

16

420926377

LOCK WASHER

19

420942950

NUT-HEX.M10X1

20

420947010

STEP COLLAR

21

420867191

COMPRESSOR IMPELLER

22

420927413

SHIM

23

420842834

CAP NUT

24

420867152

COMPRESSOR HOUSING

25

420641238

SCREW-TORX FLANGE

26

420660150

FORM HOSE

27

420851703

GEAR CLAMP

28

420881949

SUPERCHARGER REPAIR BV

29

293800060

LOCTITE-243

30

219700346

4 STROKE OIL 10W-40

31

293800081

LOCTITE-5910

32

293550021

GREASE-ISOFLEX

33

293550030

GREASE
