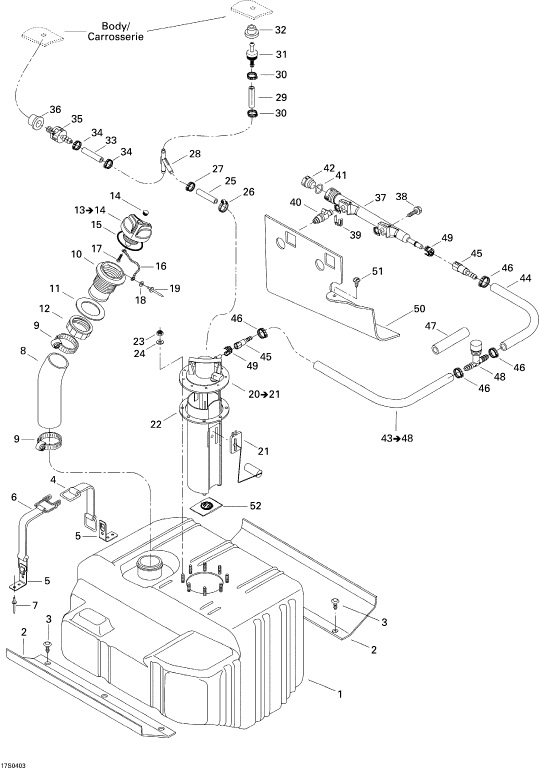

1

275500427

TANK-FUEL

2

293830077

PAD-RUBBER

3

293730006

DART-BLACK

4

293850036

STRAP-FUEL TANK

5

293850076

CLIP-STRAP 90

6

293850038

STRAP

7

293150037

RIVET-AVDEL 3/16

8

275500434

HOSE-FIL.NECK

9

293650023

CLAMP-TRIDON

10

275500231

NECK-FILLER

11

293250029

GASKET

12

211100012

NUT-NECK FILLER FUEL

13

275500430

CAP-FUEL SUB

14

293000034

CAP-SNAP BLACK

15

293250075

GASKET

16

275500518

CHAIN-CAP FUEL

17

241140060

SCREW-PT.HEX.FLANGE K40 X 10

18

234032600

WASHER-FLAT DIN.9021B-A2

19

390407900

RIVET-POP 1/8

20

270600089

MODULE-FUEL PUMP/REWORK

21

270600012

LEVEL-SENSOR

22

293250088

GASKET

23

232551200

NUT-STOP ELASTIC DIN.985

24

234052400

WASHER-FLAT DIN.7349

25

275500549

HOSE-1/4 (10M/PAC)

26

293650170

HOSE CLAMP

27

293650050

CLAMP-CLIC

28

293710059

FITTING-Y

29

275500549

HOSE-1/4 (10M/PAC)

30

293650050

CLAMP-CLIC

31

275500398

VALVE-CHECK

32

293720029

GROMMET

33

275500549

HOSE-1/4 (10M/PAC)

34

293650050

CLAMP-CLIC

35

275500505

VALVE-CHECK

36

293720029

GROMMET

37

270600007

RAIL-FUEL ASSY

38

207562560

SCREW-HEX.FLANGE DIN.6921 S.GR

39

270600094

CIRCLIP

40

270600095

INJECTOR

41

293300042

RING-O

42

270600009

CAP

43

275500625

HOSE-ASSY

44

275500626

HOSE-5/16

45

275500428

CONNECTOR-BOX

46

293650011

CLAMP-OETIKER

47

276000132

SHRINK TUBING

48

293710104

BLEED VALVE

49

275500429

CONNECTOR-STOPPER

50

275500441

RAIL-PROTECTOR

51

293730018

DART-MOUNT

52

219700368

BOSCH SERVICE FILTER
