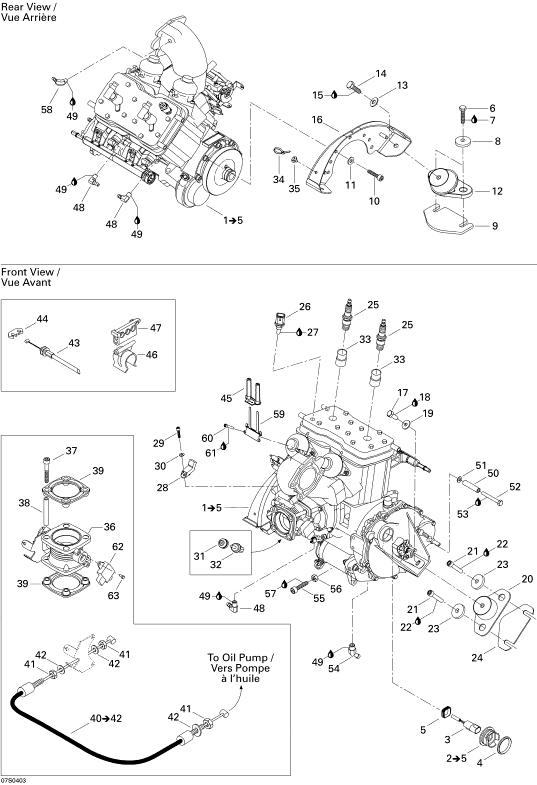

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
270000599 |
ENGINE-787 SDI
|
|
2 |
270000243 |
ADAPTOR-ASSY.
|
|
3 |
278000635 |
HOUSING-TAB
|
|
4 |
293300033 |
GASKET
|
|
5 |
293200042 |
GASKET
|
|
6 |
205084060 |
SCREW-SOCKET HD.DIN.912A2
|
|
7 |
293800060 |
LOCTITE-243
|
|
8 |
250200018 |
WASHER-CONE
|
|
9 |
270000445 |
SHIM- 0-3MM
|
|
9 |
270000446 |
SHIM- 1-3MM
|
|
10 |
205582560 |
SCREW-SOCKET
|
|
11 |
234081600 |
WASHER-FLAT DIN.125A-A2
|
|
12 |
270000612 |
RUBBER MOUNT
|
|
13 |
234082600 |
WASHER-FLAT DIN.9021B-A2
|
|
14 |
207181660 |
SCREW-HEX.CAP DIN.933A2
|
|
15 |
293800060 |
LOCTITE-243
|
|
16 |
270000584 |
SUPPORT-ENGINE
|
|
17 |
207182060 |
SCREW-HEX.CAP DIN.933A2
|
|
18 |
293800060 |
LOCTITE-243
|
|
19 |
234082600 |
WASHER-FLAT DIN.9021B-A2
|
|
20 |
270000588 |
MOUNT-RUBBER
|
|
21 |
205084060 |
SCREW-SOCKET HD.DIN.912A2
|
|
22 |
293800060 |
LOCTITE-243
|
|
23 |
250200018 |
WASHER-CONE
|
|
24 |
270000445 |
SHIM- 0-3MM
|
|
24 |
270000446 |
SHIM- 1-3MM
|
|
25 |
278000609 |
PLUG-SPARK
|
|
26 |
278001016 |
SENSOR-LIQUID
|
|
27 |
293800038 |
LOCTITE-518
|
|
28 |
270600040 |
SENSOR-PRESS.
|
|
29 |
205561260 |
SCREW-SOCKET DIN.912A2 S.GRIP
|
|
30 |
234061600 |
WASHER-FLAT DIN125A-A2
|
|
31 |
278001054 |
INSULATOR
|
|
32 |
270600000 |
SENSOR-AIR
|
|
33 |
278001380 |
CAP-PROTECTOR
|
|
34 |
414115200 |
TIE-RAP 180MM
|
|
35 |
293730018 |
DART-MOUNT
|
|
36 |
270600092 |
BODY-THROTTLE
|
|
37 |
205569060 |
SCREW-SOCKET DIN.912A2 S.GRIP
|
|
38 |
275500352 |
TUBE-SPACER
|
|
39 |
293250071 |
GASKET
|
|
40 |
270000437 |
CABLE-INJECT.
|
|
41 |
232160600 |
NUT-JAM HEXAGONAL DIN.439B-A2
|
|
42 |
234061600 |
WASHER-FLAT DIN125A-A2
|
|
43 |
277000847 |
CABLE-THROTTLE
|
|
44 |
277000279 |
LOCK-TAB
|
|
45 |
278001512 |
INSULATOR
|
|
46 |
278001597 |
SUPPORT-WIRE
|
|
47 |
278000559 |
SUPPORT-COLLAR
|
|
48 |
293700016 |
FITTING-ELBOW
|
|
49 |
293800013 |
SEALANT-PIPE
|
|
50 |
275500640 |
TUBE-SPACER
|
|
51 |
234061600 |
WASHER-FLAT DIN125A-A2
|
|
52 |
207066060 |
SCREW-HEX.CAP DIN.931A2
|
|
53 |
293800060 |
LOCTITE-243
|
|
54 |
293700036 |
FITTING-ELBOW
|
|
55 |
205003060 |
SCREW-SOCKET HD.DIN.912A2
|
|
56 |
232001600 |
NUT-HEXAGONAL DIN.934A2
|
|
57 |
293800005 |
LOCTITE-271
|
|
58 |
293710018 |
FITTING-ELBOW
|
|
59 |
278001662 |
PLATE-GROUND
|
|
60 |
205062560 |
SCREW-SOCKET HD.DIN.912A2
|
|
61 |
293800060 |
LOCTITE-243
|
|
62 |
270000251 |
SENSOR-THROTTL
|
|
