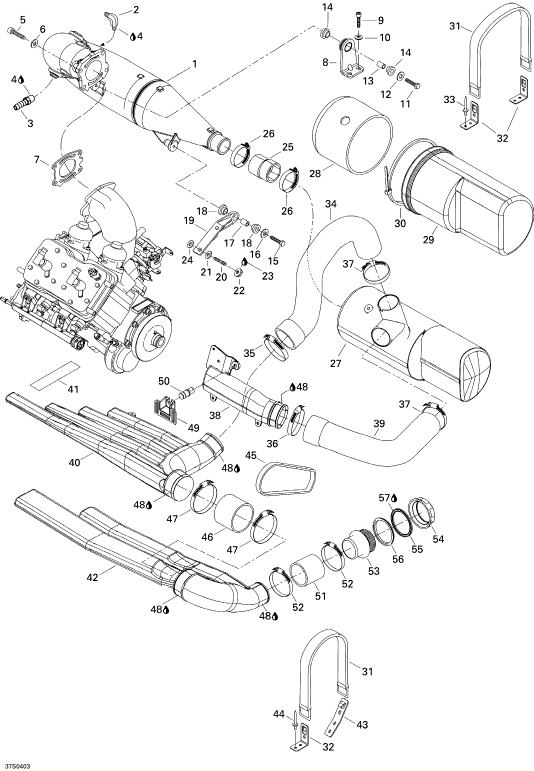

1

274001098

PIPE-HEAD

2

293710018

FITTING-ELBOW

3

293710021

CONNECTOR-MALE

4

293800018

SEALANT-PIPE

5

244003560

SCREW-SOCKET DIN.912A2 S.GRIP

6

234001600

WASHER-FLAT DIN.125A-A2

7

420931503

EXHAUST GASKET

8

274001104

SUPP-PIPE

9

205582560

SCREW-SOCKET

10

293050001

WASHER-8MM

11

207284060

SCREW-HEX.CAP-DIN.931A2 S.GRIP

12

234082600

WASHER-FLAT DIN.9021B-A2

13

274000254

BUSHING

14

293830036

BUSHING-RUBBER

15

207284060

SCREW-HEX.CAP-DIN.931A2 S.GRIP

16

234082600

WASHER-FLAT DIN.9021B-A2

17

274000254

BUSHING

18

293830036

BUSHING-RUBBER

19

274000759

SUPP-PIPE

20

250300007

STUD-M10X60

21

234001600

WASHER-FLAT DIN.125A-A2

22

233101600

NUT-FLANGE HEXAGONAL

23

293800060

LOCTITE-243

24

234002600

WASHER-FLAT DIN.9021B-A2

25

274000170

HOSE-EXHAUST

26

293650023

CLAMP-TRIDON

27

274001022

MUFFLER-WELD

28

274000790

COVER-MUFFLER

29

274000793

COVER-MUFFLER

30

293750020

TIE-RAP 838MM

31

293850036

STRAP-FUEL TANK

32

293850076

CLIP-STRAP 90

33

293150037

RIVET-AVDEL 3/16

34

274001028

HOSE-EXHAUST

35

293650107

CLAMP-TRIDON

36

293650006

CLAMP-TRIDON

37

293650064

CLAMP-TRIDON

38

274001018

RESONATEUR

39

274001019

HOSE

40

274000700

RESONATOR-LH.

41

274000752

PAD-RUBBER

42

274000701

RESONATOR-LH.

43

293850030

CLIP-STRAP

44

293150037

RIVET-AVDEL 3/16

45

293830034

STRIP-RUBBER

46

274000726

HOSE-EXHAUST

47

204000079

CLAMP-TRIDON

48

293800090

SEALANT

49

291001352

TIE-RESONATOR

50

293830062

PAD-RUBBER

51

274000616

HOSE-EXHAUST

52

293650064

CLAMP-TRIDON

53

274000843

OUTLET-EXHAUST

54

274000224

NUT-72MM

55

274000225

WASHER-STABILIZING

56

293250041

GASKET

57

296000309

SEAL-SILICONE
