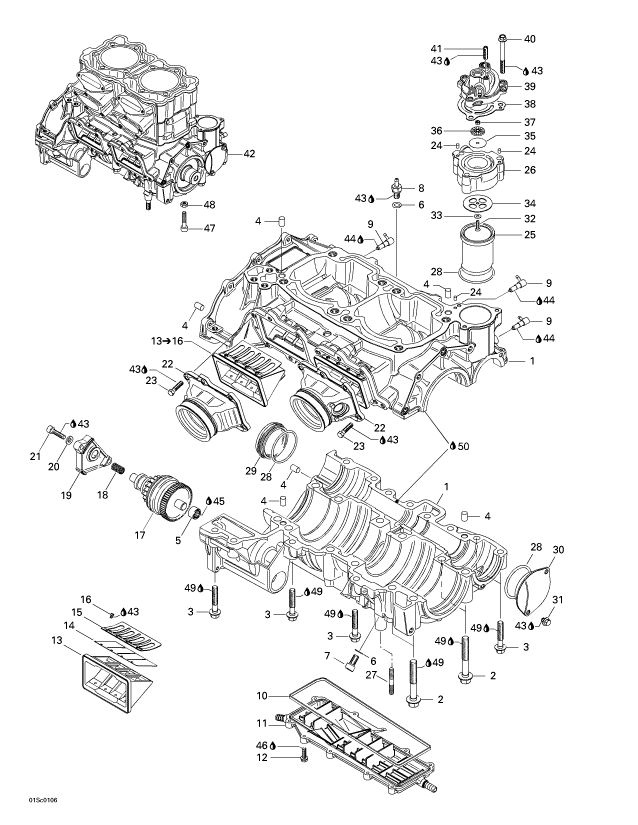

1

290888532

CRANKCASE-ASSY

2

290941333

SCREW-HEX.FLAN

3

290940638

SCREW-HEX.FLAN

4

290632010

PIN-CENTER

5

290232480

BUSHING-NEEDLE

6

420950141

RING-SEALING

7

205081660

SCREW-SOCKET HD.DIN.912A2

8

290640970

NIPPLE-VENT

9

420956510

VALVE-CHECK

10

290931880

RING-RUBBER

11

290811430

COVER-WATERCHANNEL

12

290841558

SCREW-TAPTITE

13

290924602

VALVE-REED ASS

14

290924612

REED-PEDAL

15

290924617

STOP-REED PEDAL

16

420941215

SCREW-OVAL HEAD M3X5

17

290888042

DRIVE-STARTER

18

290938204

SPRING

19

290811210

COVER-DRIVE ST

20

420845020

WASHER-SPRING

21

420840401

SCREW-ALLEN M6X22 DIN.912

22

290867890

ADAPTOR-INTAKE

23

207662544

SCREW-HEX.FLANGE DIN.6921

24

290232020

PIN

25

290923910

SLEEVE-COMPRESSOR

26

290923891

HEAD-COMPRESSOR

27

420840290

STUD-M10 X 18

28

290230300

RING-O

29

290811200

COVER-BEARING

30

290811205

COVER-BEARING

31

207661244

SCREW-HEX.FLANGE DIN.6921

32

290841368

SCREW-OVAL HEAD

33

290944590

WASHER

34

290854500

REED-INLET DISC

35

290854510

REED-EXHAUST DISC

36

290944600

GUIDE-DIAPHRAGM

37

290242533

NUT-LOCK

38

290931870

GASKET

39

290923901

COVER-COMPRESSOR

40

290640563

SCREW-HEX.FLAN

41

290640873

SCREW-ADJUSTER

42

290094705

BLOCK-SHORT947

43

293800060

LOCTITE-243

44

413711400

LOCTITE-648

45

413707000

DOW CORNING 111

46

293800070

LOCT-ANTISEIZE

47

205003060

SCREW-SOCKET HD.DIN.912A2

48

232001600

NUT-HEXAGONAL DIN.934A2

49

293800038

LOCTITE-518

50

293800081

LOCTITE-5910

51

290888134

SET-GASKET
