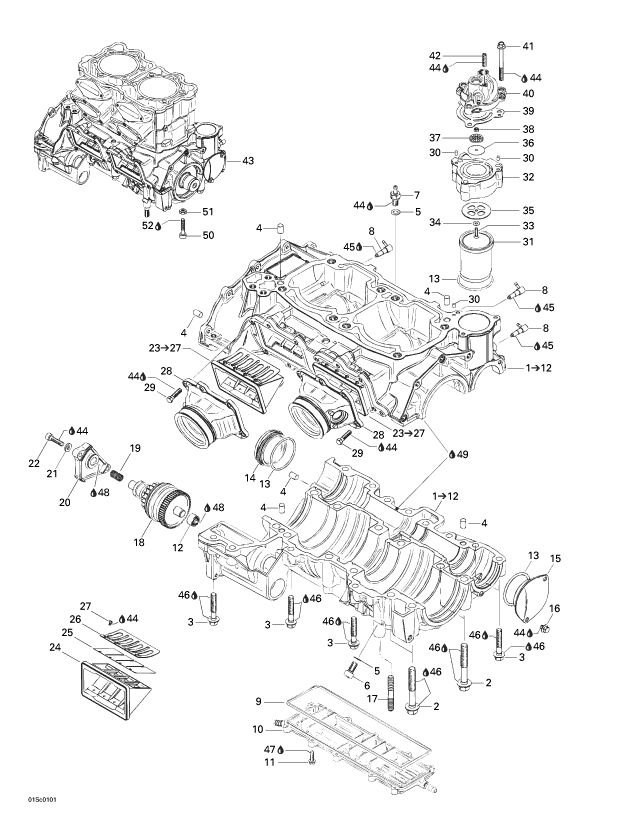

1

290888532

CRANKCASE-ASSY

2

290941333

SCREW-HEX.FLAN

3

290940638

SCREW-HEX.FLAN

4

290632010

PIN-CENTER

5

420950141

RING-SEALING

6

205081660

SCREW-SOCKET HD.DIN.912A2

7

290640970

NIPPLE-VENT

8

420956510

VALVE-CHECK

9

290931880

RING-RUBBER

10

290811430

COVER-WATERCHANNEL

11

290841558

SCREW-TAPTITE

12

290232480

BUSHING-NEEDLE

13

290230300

RING-O

14

290811200

COVER-BEARING

15

290811205

COVER-BEARING

16

207661244

SCREW-HEX.FLANGE DIN.6921

17

420840290

STUD-M10 X 18

18

290888042

DRIVE-STARTER

19

290938204

SPRING

20

290811210

COVER-DRIVE ST

21

420845020

WASHER-SPRING

22

420840401

SCREW-ALLEN M6X22 DIN.912

23

290924602

VALVE-REED ASS

25

290924612

REED-PEDAL

26

290924617

STOP-REED PEDAL

27

420941215

SCREW-OVAL HEAD M3X5

28

290867890

ADAPTOR-INTAKE

29

207662544

SCREW-HEX.FLANGE DIN.6921

30

290232020

PIN

31

290923910

SLEEVE-COMPRESSOR

32

290923891

HEAD-COMPRESSOR

33

290841368

SCREW-OVAL HEAD

34

290944590

WASHER

35

290854500

REED-INLET DISC

36

290854510

REED-EXHAUST DISC

37

290944600

GUIDE-DIAPHRAGM

38

290242533

NUT-LOCK

39

290931870

GASKET

40

290923901

COVER-COMPRESSOR

41

290640563

SCREW-HEX.FLAN

42

290640873

SCREW-ADJUSTER

43

290094705

BLOCK-SHORT947

44

293800060

LOCTITE-243

45

413711400

LOCTITE-648

46

293800038

LOCTITE-518

47

293800070

LOCT-ANTISEIZE

48

293550014

GREASE

49

293800081

LOCTITE-5910

50

205003060

SCREW-SOCKET HD.DIN.912A2

51

232001600

NUT-HEXAGONAL DIN.934A2

52

293800005

LOCTITE-271

53

290888134

SET-GASKET

54

290888139

SET-GASKET CYL
