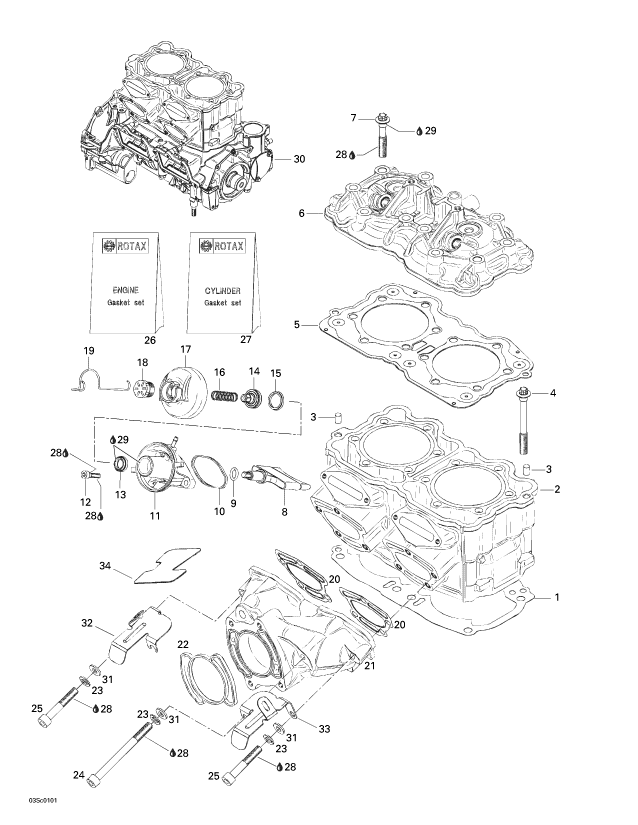

1

290931907

GASKET-CYL.

1

290931906

GASKET-CYL.

1

290931905

GASKET-CYL.

2

290923718

CYLINDER-ASSY.

3

290632010

PIN-CENTER

4

290640293

SCREW-TORX M10X94

5

290931705

GASKET-CYL HE

6

290923586

CYLINDER-HEAD ASSY

7

290640308

SCREW-HEXALOB.FL.

8

290854540

VALVE-EXHAUST

9

290250460

RING-O

10

290931670

GASKET-RUBBER

11

290854555

HOUSING-RAVE

12

205062560

SCREW-SOCKET HD.DIN.912A2

13

290931970

SPRING-RAVE

14

290854560

PISTON-VALVE EXH.

15

290931950

RING-GROOVED

16

290939130

SPRING-RAVE

17

290911555

COVER-VALVE

18

420241222

SCREW-ADJUSTER

19

290838083

CLIP-SPRING

20

290931653

GASKET

21

290979606

EXHAUST MANIFOLD SILVER

22

290931990

GASKET

23

234101601

WASHER-LOCK HELICAL

24

290941483

SCREW-SOCKET

25

205006060

SCREW-SOCKET HD.DIN.912A2

26

290888134

SET-GASKET

27

290888139

SET-GASKET CYL

28

293800060

LOCTITE-243

29

293550014

GREASE

30

290094705

BLOCK-SHORT947

31

234000600

WASHER-FLAT DIN.433A2

32

273000170

SUPP-DUCT

33

273000169

SUPP-DUCT

34

273000165

PAD-PROTECTOR
