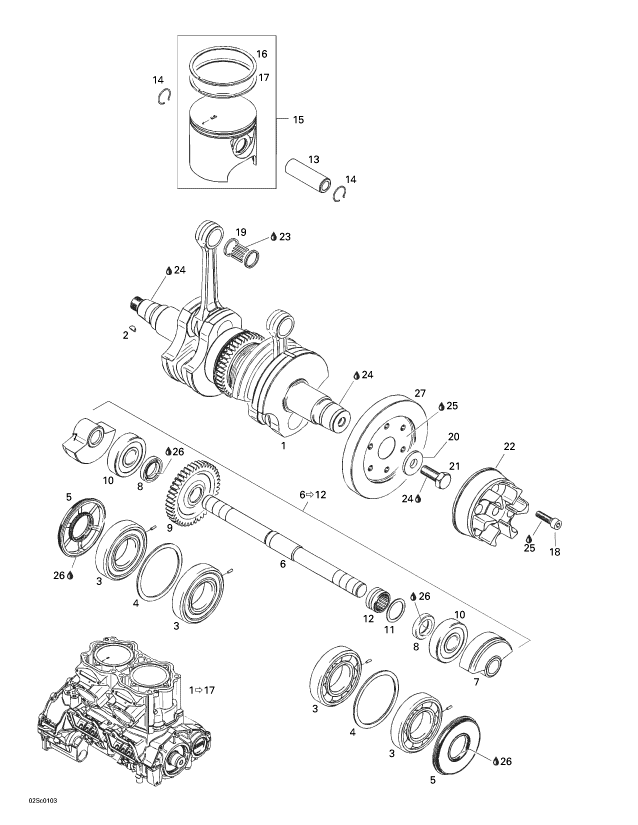

1

290094703

SHORT BLOCK 947

1

290887762

CRANKSHAFT-ASS

2

420246055

KEY-WOODRUFF

3

420432271

BEARING-BALL 947CRANK

4

420926190

WASHER 947CRANKSHAFT

5

290931731

SEAL-OIL

6

290837387

SHAFT-BAL.ASSY

10

290932098

BEARING-BALL

11

420927192

WASHER

12

290232555

BEARING-NEEDLE

13

290916396

PISTON PIN

14

290845465

CIRCLIP-#21

15

290888570

PISTON-ASSY

15

290888571

PISTON-ASSY.

16

290815175

RING-L

16

290815176

RING-L

17

290815192

RING-R

17

290815193

RING-L

18

205083060

SCREW-SOCKET HD.DIN.912A2

19

290832550

NEEDLE BEARING

20

290827782

WASHER

21

290640120

SCREW-HEX.

22

290958137

FLANGE-COUPLING

23

413802900

OIL 2T 12X1 MINERAL

24

293800060

LOCTITE-243

25

413711400

LOCTITE-648

26

413707000

DOW CORNING 111

27

290958082

COUPLING-SILVER

28

290889150

SET-GASKET

29

290889155

SET-GASKET CYL
