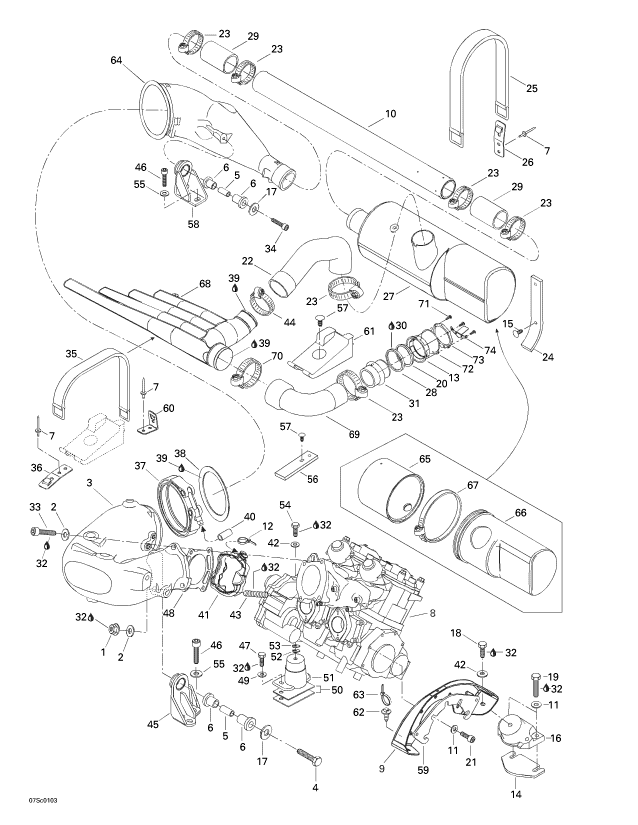

見出番号
部品番号
部品名
数量
1
233101600
NUT-FLANGE HEXAGONAL
2
211200051
WASHER-FLAT
3
274000927
PIPE-HEAD
4
245004060
SCREW-HEX.CAP-DIN.931A2 S.GRIP
5
274000861
BUSHING
6
293830065
BUSHING-RUBBER
7
293150037
RIVET-AVDEL 3/16
8
270000524
ENGINE-947
9
270000359
SUPPORT-ENGINE
10
274000948
TUBE-EXP.
11
234081600
WASHER-FLAT DIN.125A-A2
12
293750002
TIE-RAP 130MM
13
274000835
NUT-72MM
14
270000122
SHIM- 0-3MM
270000123
SHIM- 1-3MM
15
414644300
DART-WINDSHIELD
16
270000421
MOUNT-RUBBER
17
234002600
WASHER-FLAT DIN.9021B-A2
18
207181660
SCREW-HEX.CAP DIN.933A2
19
207184060
20
274000225
WASHER-STABILIZING
21
205582560
SCREW-SOCKET
22
274000783
HOSE-EXHAUST
23
293650064
CLAMP-TRIDON
24
293830089
PAD-RUBBER
25
293850026
STRAP-FUEL TANK
26
293850024
CLIP-STRAP
27
274000810
MUFFLER
28
293250041
GASKET
29
274000530
30
296000309
SEAL-SILICONE
31
274000843
OUTLET-EXHAUST
32
293800060
LOCTITE-243
33
244003560
SCREW-SOCKET DIN.912A2 S.GRIP
34
244004060
35
36
37
274000510
CLAMP-EXHAUST
38
274000511
RING-SEALING
39
293800090
SEALANT
40
275000007
HOSE-8MM.(10M/PAC)
41
274000862
ENV-PICK UP
42
234082600
43
250300008
STUD-M10X55
44
293650107
45
274000890
SUPP-PIPE
46
244083060
47
48
290931990
49
50
51
270000430
MOUNT-RUBBER PAINT
52
270000024
SHIM- 0-4MM
53
270000025
54
207182060
55
250200012
WASHER-FLAT M8.4
56
293830073
PAD RESONATOR
57
293730006
DART-BLACK
58
274000878
59
293250110
60
293850045
CLIP-STRAP 90
61
292000628
PAD-FOAM
62
293730018
DART-MOUNT
63
414115200
TIE-RAP 180MM
64
274000658
CONE-EXHAUST
65
274000811
COVER-MUFFLER
66
274000812
67
293750020
TIE-RAP 838MM
68
274000700
RESONATOR-LH.
69
274000784
HOSE-ADAPTER
70
204000079
71
241141660
SCREW-PT.HEX.FLANGE K40 X 16
72
293250107
73
274000892
NUT-SUPPORT
74
274000885
BRACKET
