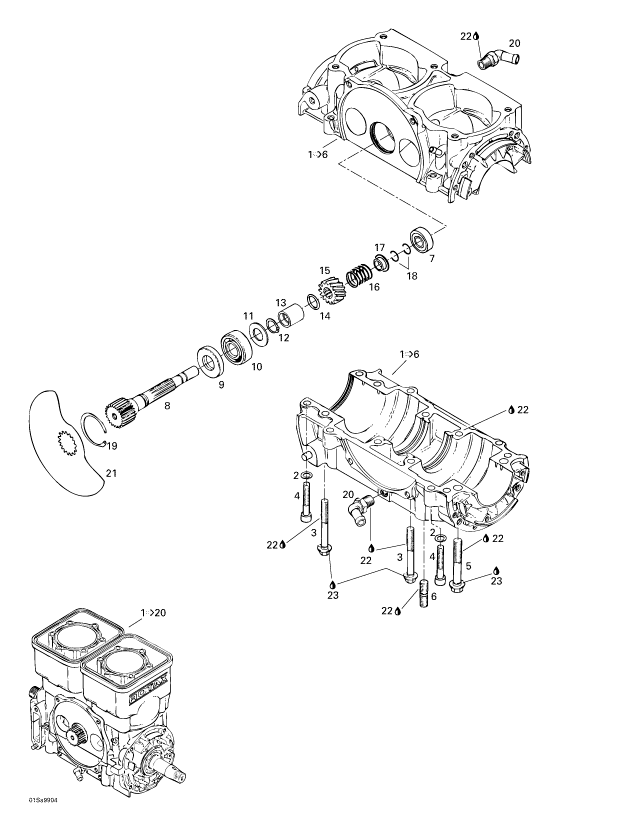

1

290071703

SHORT BLOCK

1

290887199

CRANKCASE-ASSY

2

234180602

WASHER-LOCK SPRING DIN.128A-A2

3

290841998

SCREW-HEX.FLAN

4

205084560

SCREW-SOCKET HD.DIN.912A2

5

290941333

SCREW-HEX.FLAN

6

290940798

STUD-M10 X 25

7

420932797

BEARING-6201-Z

8

290837252

SHAFT-ROTARY

9

420930580

SEAL-OIL

10

290932032

BEARING-BALL

11

420227439

SHIM

12

420845450

RING-LOCK

13

420847282

BUSHING-SPACER

14

293300024

RING-O

15

420935735

SPROCKET-14 TEETH

16

420938810

SPRING

17

420827430

SEAT-SPRING

18

420845160

CIRCLIP

19

420845260

RING-LOCK

20

420922245

TUBE-ANGULAR

21

420924502

VALVE-ROTARY

22

293800038

LOCTITE-518

23

413707000

DOW CORNING 111

24

290886317

SET-GASKET
