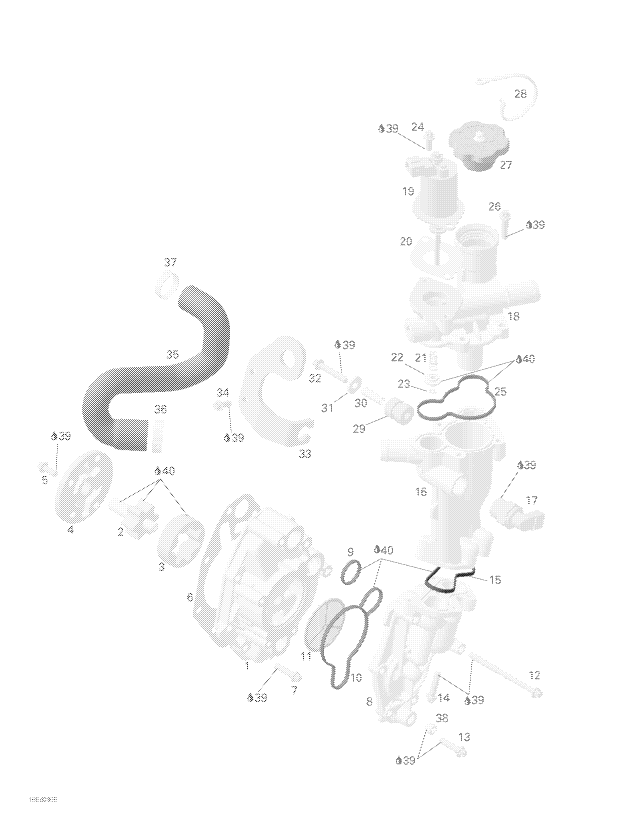

1

420811840

OIL PUMP HOUSING

2

420837542

PUMP SHAFT ASSY

3

420956675

OUTER ROTOR 16MM

4

420811850

OIL PUMP COVER

5

420641048

TORX FLANGE SCREW

6

420950970

GASKET

7

420641238

SCREW-TORX FLANGE

8

420811891

OIL SIEVE COVER

9

420630240

SEAL RING

10

420950850

GASKET

11

420256570

SIEVE-OIL

12

420641228

TORX FLANGE SCREW

13

420641238

SCREW-TORX FLANGE

14

420641238

SCREW-TORX FLANGE

15

420630231

GASKET

16

420956761

OIL SEPARATOR HOUSING

17

420256880

OIL PRESSURE SWITCH

18

420811962

OIL SEPARATOR COVER

19

420956660

SHUT OFF SOLENOID

20

420630540

GASKET

21

420939250

COMPRESSION SPRING

22

420856055

VALVE DISC

23

420845620

RETAINING RING

24

420641048

TORX FLANGE SCREW

25

420630220

GASKET

26

420641238

SCREW-TORX FLANGE

27

420956920

PLUG COVER

28

420660620

RETAINING BAND

29

420660090

RUBBER BRACKET

30

420847970

SPACER

31

420827968

WASHER M6

32

420641258

SCREW TORX FLANGE M6 X 35

33

420851610

TRANSPORT BRACKET FRONT

34

420641048

TORX FLANGE SCREW

35

420956970

FORM HOSE

36

420851673

GEAR CLAMP

37

420851663

【品番変更・価格改正→509000442】

38

420641323

SCREW

39

293800060

LOCTITE-243

40

293600039

OIL 4T 12X1 BLEND QUART
