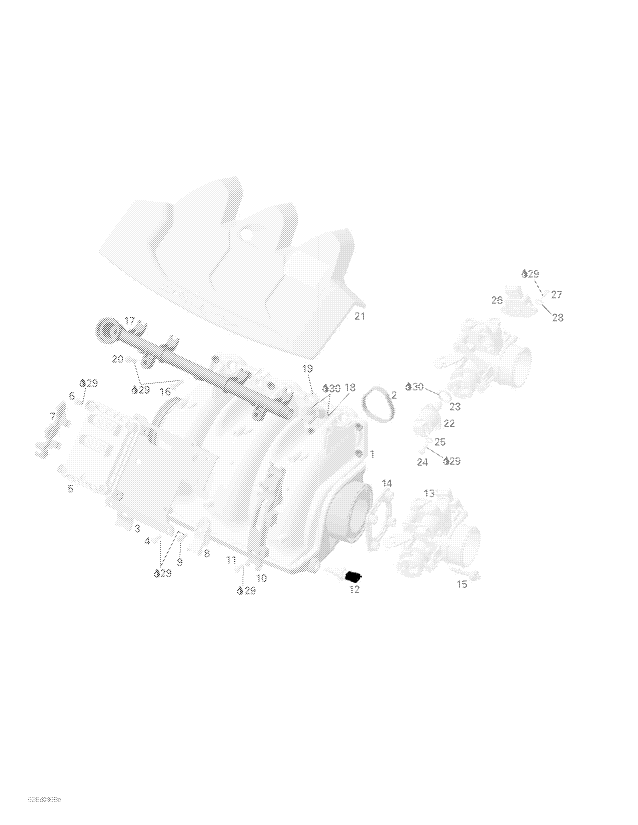

1

420867920

AIR INTAKE MANIFOLD

2

420950740

GASKET

3

420851520

BASE PLATE

4

420641048

TORX FLANGE SCREW

5

420664131

ELECTRONIC BOX

6

420641583

TORX FLANGE SCREW

7

420660400

CONNECTOR BRACKET

8

420274055

TEMPERATURE SENSOR

9

420641048

TORX FLANGE SCREW

10

420660410

WIRING SUPPORT

11

420641583

TORX FLANGE SCREW

12

420222425

TEMPERATURE SENSOR

13

420889022

THROTTLE BODY SOCKET ASSY.

14

420950792

RUBBER GASKET

15

420641268

SCREW-TORX

16

420641238

SCREW-TORX FLANGE

17

420874391

FUEL RAIL ASSY.

18

420874430

INJECTOR

19

420851530

INJECTOR CLIP

20

420641238

SCREW-TORX FLANGE

21

420660172

COVER

22

420963050

IDLE BYPASS VALVE

23

420631780

O RING

24

420440911

BINDING HEAD SCREW 4-5 NM

25

420845710

SNAP RING

26

270000251

SENSOR-THROTTL

27

208641660

SCREW-PAN HD.PH.DIN.7985A-A2

28

234042600

WASHER-FLAT DIN.9021B-A2

29

293800060

LOCTITE-243

30

293600039

OIL 4T 12X1 BLEND QUART
