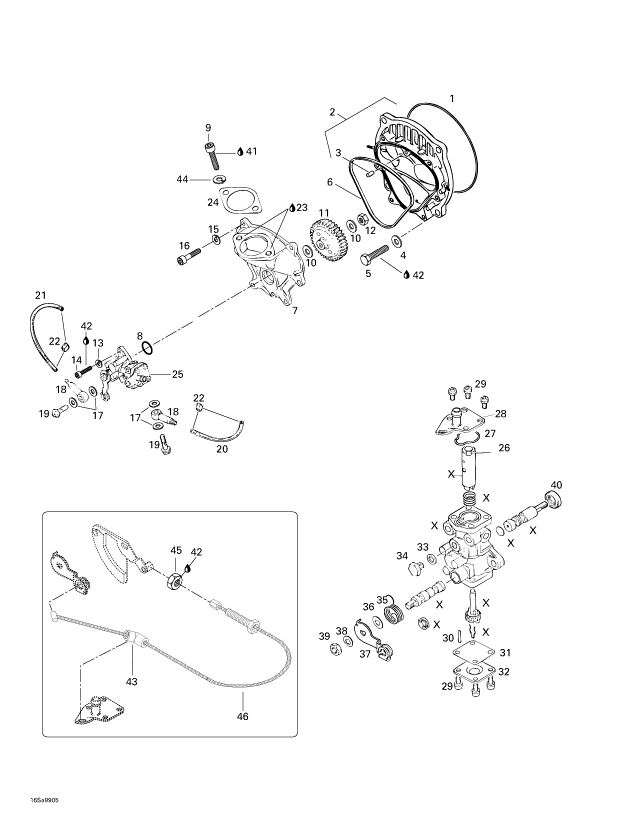

1

293300023

RING-O

2

290811252

COVER-ROTARY

3

290929650

PIN-DOWEL 5X10

4

290250313

WASHER

5

290940598

SCREW-HEX.

6

290850160

RING-RUBBER

7

290811193

FLANGE-PUM.OIL

8

293300018

RING-O

9

205587560

SCREW-SOCKET DIN.912A2 S.GRIP

10

290927945

WASHER

11

290935945

GEAR-41TH.

12

232561414

NUT-STOP ELASTIC DIN.985

13

290845389

WASHER-LOCK

14

205051660

SCREW-SOCKET HD.DIN.912A2

15

290845381

WASHER-LOCK

16

205062060

SCREW-SOCKET HD.DIN.912A2

17

290227500

WASHER-SEAL

18

290956010

VALVE-CHECK

19

290241830

BOLT-BANJO

20

275000039

HOSE-OIL

21

275000039

HOSE-OIL

22

290853843

CLAMP

23

293800038

LOCTITE-518

24

293250042

GASKET

25

290996725

PUMP-OIL ASSY.

26

290256085

HOLDER

27

293300019

RING-O

28

290956340

PLATE-PUMP OIL

29

420241975

SCREW-WITH STOPPER M4 X 8

30

290929900

PIN-STOP

31

420850200

GASKET

32

290956031

PLATE-PUMP OIL

33

420227505

WASHER-SEAL

34

290841583

SCREW-HEX.

36

290227665

WASHER

37

290848162

LEVER-CONTROL

38

290845381

WASHER-LOCK

39

290242623

NUT-HEX.

40

293200038

SEAL-OIL

41

293550010

GREASE-SYNTH

42

293800015

LOCTITE-242

43

270000187

GUIDE-CABLE

44

234081600

WASHER-FLAT DIN.125A-A2

45

232160600

NUT-JAM HEXAGONAL DIN.439B-A2

46

270000386

CABLE-INJECT.

47

290886317

SET-GASKET
