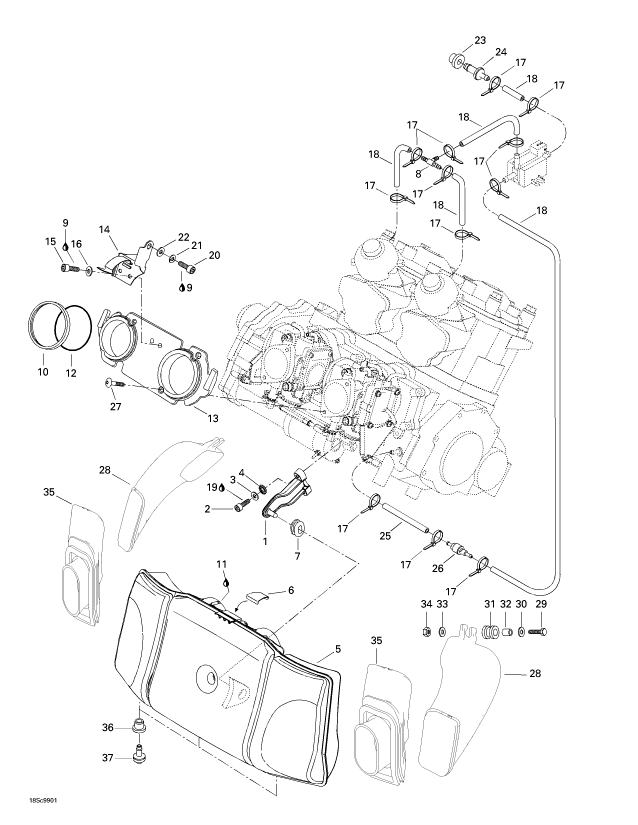

1

273000123

SUPP.SILENC

2

205063560

SCREW-SOCKET HD.DIN.912A2

3

234061600

WASHER-FLAT DIN125A-A2

4

234461608

WASHER-LOCK SERRATED DIN.6798A

5

273000148

SILENCER-AIR

6

273000112

PLATE-SUPPORT

7

293720052

GROMMET-CABLE

8

293710068

FITTING-T

9

293800015

LOCTITE-242

10

293250076

GASKET

11

293550004

GREASE-DIELECT DC4

12

293250065

RING-O

13

270500383

ADAP-SILENC.AIR

14

270000455

HOLDER

15

205061660

SCREW-SOCKET HD.DIN.912A2

16

234061600

WASHER-FLAT DIN125A-A2

17

293750001

TIE-RAP 94MM

18

270000374

HOSE-4.3MM(15M/PAC)

19

293800005

LOCTITE-271

20

205081660

SCREW-SOCKET HD.DIN.912A2

21

234181601

WASHER-LOCK HELICAL

22

234082600

WASHER-FLAT DIN.9021B-A2

23

293720029

GROMMET

24

293700031

FITTING

25

276000048

HOSE-6MM

26

275500424

VALVE-CHECK

27

270500357

SCREW-ASSY.

28

273000151

DUCT-AIR HIGH

28

273000150

DUCT-AIR HIGH

29

207063560

SCREW-HEX.CAP DIN.931A2

30

234062600

WASHER-FLAT DIN.9021B-A2

31

278001260

INSULATOR

32

272000074

SPACER

33

234061600

WASHER-FLAT DIN125A-A2

34

232561600

NUT-STOP ELASTIC DIN.985-A2

35

273000153

ADAPTOR-INTAKE

35

273000152

ADAPTOR-INTAKE

36

293720029

GROMMET

37

275500443

VALVE-CHECK
