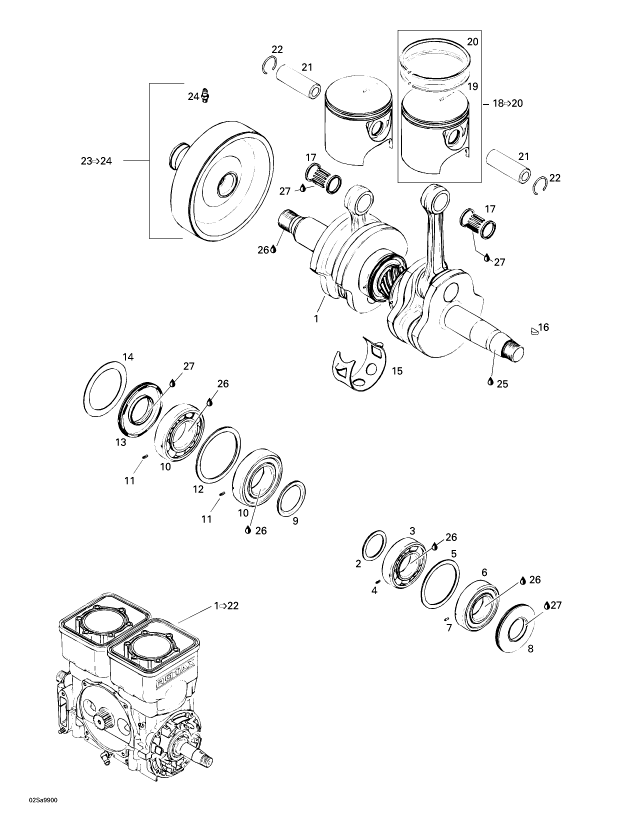

1

290071703

SHORT BLOCK

1

290887867

CRANKSHAFT-ASS

2

290827447

RING-DISTANCE

3

420832538

BEARING-BALL

4

420929972

PIN-ROLL

5

420827050

DISK-RETAINING

6

290832533

BEARING-BALL

7

290832470

PIN-ROLL

8

290830749

SEAL-OIL

9

420827760

RING-DISTANCE

10

420832574

BEARING-BALL

11

420929972

PIN-ROLL

12

420927710

DISK-RETAINING

13

290831952

SEAL-OIL

14

290926060

SHIM-RETAINING

15

290926070

RING-RETAINER

16

420246055

KEY-WOODRUFF

17

290832420

NEEDLE BEARING

18

290887670

PISTON-ASSY.

18

290887671

PISTON-ASSY.
Piston

18

290887672

PISTON-ASSY.
Piston

19

290815080

RING-R 82.00

19

290815081

RING-R 82.25
Rectangular

19

290815082

RING-R 82.50
Rectangular

20

290815070

RING-L 82.00

20

290815071

RING-L 82.25
Semi-Trapez

20

290815072

RING-L 82.50
Semi-Trapez

21

290916401

PISTON PIN

22

420845100

CIRCLIP-PISTON

23

290958012

CLUTCH-FLY.PTO

24

290499113

FITTING-GREASE

25

293800015

LOCTITE-242

26

293800023

LOCT-ANTISEIZE

27

413707000

DOW CORNING 111

28

290886317

SET-GASKET

29

290886316

SET-GASKET CYL
