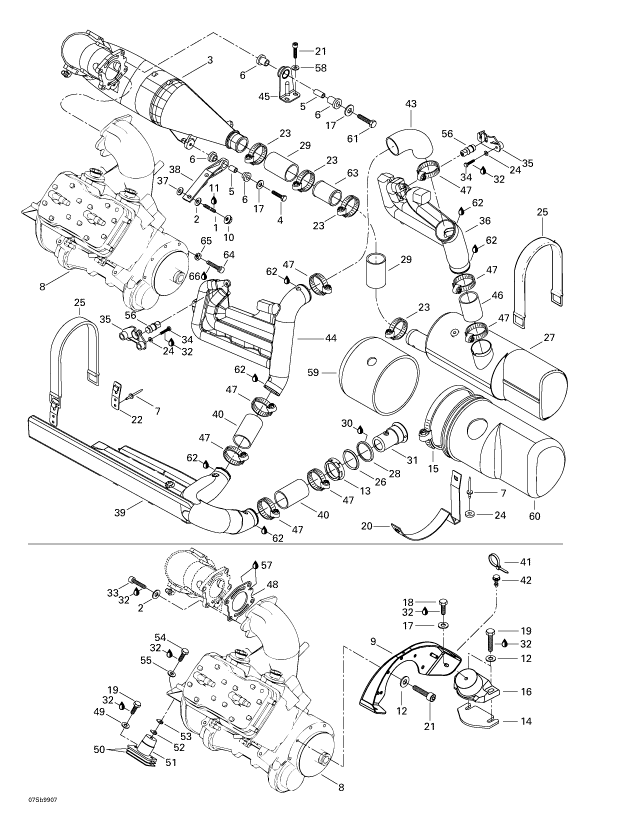

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
250300001 |
STUD-SCOTCH GRIP M10 X 55
|
|
2 |
234001600 |
WASHER-FLAT DIN.125A-A2
|
|
3 |
274000395 |
PIPE-HEAD
|
|
4 |
207284060 |
SCREW-HEX.CAP-DIN.931A2 S.GRIP
|
|
5 |
274000254 |
BUSHING
|
|
6 |
293830036 |
BUSHING-RUBBER
|
|
7 |
293150037 |
RIVET-AVDEL 3/16
|
|
8 |
270000466 |
ENGINE-787
|
|
9 |
270000359 |
SUPPORT-ENGINE
|
|
10 |
233101600 |
NUT-FLANGE HEXAGONAL
|
|
11 |
413705200 |
LOCTITE-262
|
|
12 |
234081600 |
WASHER-FLAT DIN.125A-A2
|
|
13 |
274000224 |
NUT-72MM
|
|
14 |
270000122 |
SHIM- 0-3MM
|
|
14 |
270000123 |
SHIM- 1-3MM
Shim
|
|
15 |
293650092 |
CLAMP-NORMA
|
|
16 |
270000427 |
MOUNT-RUBBER PAINT
|
|
17 |
234082600 |
WASHER-FLAT DIN.9021B-A2
|
|
18 |
207181660 |
SCREW-HEX.CAP DIN.933A2
|
|
19 |
207184060 |
SCREW-HEX.CAP DIN.933A2
|
|
20 |
274000400 |
SUPPORT-MUFFLE
|
|
21 |
205582560 |
SCREW-SOCKET
|
|
22 |
293850030 |
CLIP-STRAP
|
|
23 |
293650023 |
CLAMP-TRIDON
|
|
24 |
234052600 |
WASHER-FLAT DIN.9021B-A2
|
|
25 |
293850021 |
STRAP-RUBBER
|
|
26 |
274000225 |
WASHER-STABILIZING
|
|
27 |
274000737 |
MUFFLER-ASS Y
|
|
28 |
293250041 |
GASKET
|
|
29 |
274000170 |
HOSE-EXHAUST
|
|
30 |
293800033 |
SEAL-SILICONE
|
|
31 |
274000222 |
OUTLET-EXHAUST
|
|
32 |
293800015 |
LOCTITE-242
|
|
33 |
205003560 |
SCREW-SOCKET HD.DIN.912A2
|
|
34 |
207151660 |
SCREW-HEX.CAP DIN.933A2
|
|
34 |
207152060 |
SCREW-HEX.CAP DIN.933A2
Hex.
|
|
35 |
291001204 |
SUPPORT-PAD
|
|
36 |
274000604 |
RESONATOR-RH.
|
|
37 |
234002600 |
WASHER-FLAT DIN.9021B-A2
|
|
38 |
274000759 |
SUPP-PIPE
|
|
39 |
295500683 |
KIT-RESONATOR (GTX-L)
|
|
40 |
274000616 |
HOSE-EXHAUST
|
|
41 |
294000606 |
TIE-RAP 180MM
|
|
42 |
293730018 |
DART-MOUNT
|
|
43 |
274000563 |
HOSE-EXHAUST
|
|
44 |
274000655 |
RESONATOR-LH.
|
|
45 |
274000779 |
SUPP-PIPE
|
|
46 |
274000530 |
HOSE-EXHAUST
|
|
47 |
293650064 |
CLAMP-TRIDON
|
|
48 |
290931500 |
GASKET
|
|
49 |
234081600 |
WASHER-FLAT DIN.125A-A2
|
|
50 |
270000122 |
SHIM- 0-3MM
|
|
50 |
270000123 |
SHIM- 1-3MM
Shim
|
|
51 |
270000426 |
MOUNT-RUBBER PAINT
|
|
52 |
270000024 |
SHIM- 0-4MM
|
|
53 |
270000025 |
SHIM- 1-3MM
|
|
54 |
207182060 |
SCREW-HEX.CAP DIN.933A2
|
|
55 |
234082600 |
WASHER-FLAT DIN.9021B-A2
|
|
56 |
293830062 |
PAD-RUBBER
|
|
57 |
293800038 |
LOCTITE-518
|
|
58 |
293050001 |
WASHER-8MM
|
|
59 |
274000744 |
COVER-MUFFLER
|
|
60 |
274000745 |
COVER-MUFFLER
|
|
61 |
207284060 |
SCREW-HEX.CAP-DIN.931A2 S.GRIP
|
|
62 |
413710300 |
SEALANT
|
|
63 |
274000776 |
TUBE-CURVED
|
|
64 |
205003060 |
SCREW-SOCKET HD.DIN.912A2
|
|
65 |
232001600 |
NUT-HEXAGONAL DIN.934A2
|
|
66 |
293800005 |
LOCTITE-271
|
|
