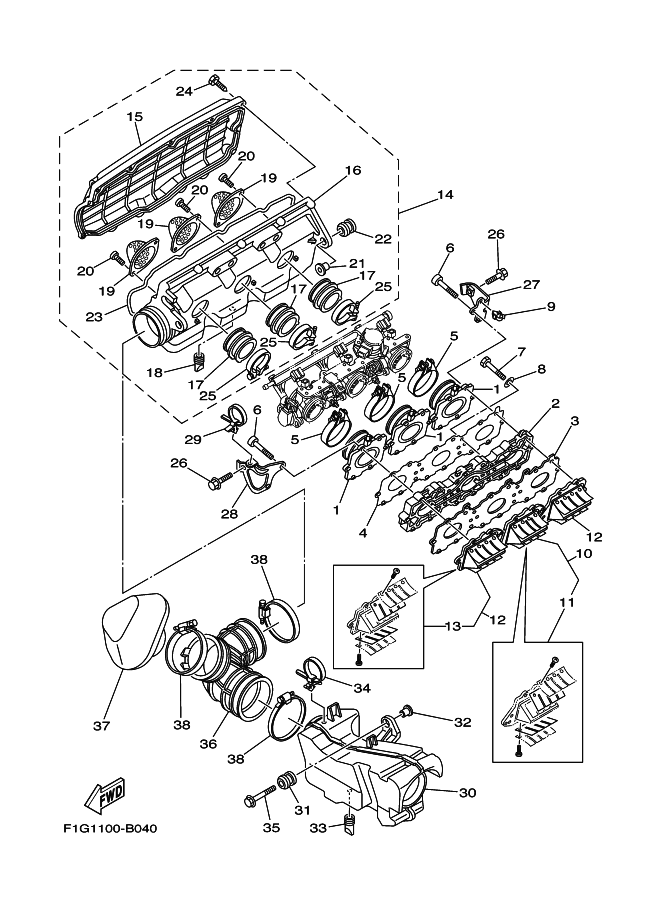

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
60T-13555-00 |
ﾏﾆﾎ-ﾙﾄﾞ,ｲﾝﾃ-ｸ
|
|
2 |
60T-14263-00-94 |
ﾌﾟﾚｰﾄ,ﾊﾞﾗﾝｽ
|
|
3 |
60T-13624-00-94 |
ﾌﾟﾚ-ﾄ,ﾘｰﾄﾞﾊﾞﾙﾌﾞ
|
|
4 |
60T-13556-00 |
ｶﾞｽｹﾂﾄ,ﾏﾆﾎ-ﾙﾄﾞ
|
|
5 |
90450-73001 |
ﾎ-ｽｸﾗﾝﾌﾟｱｾﾝﾌﾞﾘ
|
|
6 |
90110-06081 |
ﾎﾞﾙﾄ,ﾍｷｻｺﾞﾝｿｹﾂﾄﾍﾂﾄﾞ
|
|
7 |
97013-06040 |
BOLT
|
|
8 |
92903-06600 |
ﾜﾂｼﾔ,ﾌﾟﾚ-ﾄ
|
|
9 |
90464-14M55 |
CLAMP
|
|
10 |
60T-13610-00 |
ﾘ-ﾄﾞﾊﾞﾙﾌﾞｱｾﾝﾌﾞﾘ
|
|
11 |
60T-W0004-00 |
ﾘ-ﾄﾞｾﾂﾄ
|
|
12 |
60T-13620-00 |
ﾘ-ﾄﾞﾊﾞﾙﾌﾞｱｾﾝﾌﾞﾘ
|
|
13 |
60T-W0004-00 |
ﾘ-ﾄﾞｾﾂﾄ
|
|
14 |
60T-14480-11 |
ｶﾊﾞｰｻﾌﾞｱｾﾝﾌﾞﾘ
|
|
15 |
60T-14287-11 |
ｶﾊﾞｰ,ｽﾛﾂﾄﾙﾎﾞﾃﾞｰ 1
|
|
16 |
60T-14288-00 |
ｶﾊﾞｰ,ｽﾛﾂﾄﾙﾎﾞﾃﾞｰ 2
|
|
17 |
60T-14453-00 |
ｼﾞﾖｲﾝﾄ,ｴｱｸﾘ-ﾅ 1
|
|
18 |
67X-42717-00 |
RUBBER, SEAL 2
|
|
19 |
60T-14451-00 |
ｴﾚﾒﾝﾄ,ｴｱｸﾘ-ﾅ
|
|
20 |
97780-50612 |
ｽｸﾘﾕ,ﾀﾂﾋﾟﾝｸﾞ
|
|
21 |
90387-08M37 |
ｶﾗ-
|
|
22 |
90480-22M15 |
ｸﾞﾛﾒﾂﾄ
|
|
23 |
60T-14457-00 |
ｼ-ﾙ
|
|
24 |
97780-60430 |
SCREW, TAPPING
|
|
25 |
90450-57003 |
ﾎ-ｽｸﾗﾝﾌﾟｱｾﾝﾌﾞﾘ
|
|
26 |
90119-08063 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
27 |
60T-14413-00 |
ｽﾃ-
|
|
28 |
60T-14414-00 |
ｽﾃ- 2
|
|
29 |
90464-50001 |
CLAMP
|
|
30 |
60T-14440-00 |
ｻｲﾚﾝｻｱｾﾝﾌﾞﾘ,ｲﾝﾃ-ｸ
|
|
31 |
90480-22M15 |
ｸﾞﾛﾒﾂﾄ
|
|
32 |
90387-08M37 |
ｶﾗ-
|
|
33 |
67X-42717-00 |
RUBBER, SEAL 2
|
|
34 |
90464-50001 |
CLAMP
|
|
35 |
90119-08M22 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
36 |
60T-14419-00 |
ﾊﾟｲﾌﾟ
|
|
37 |
60T-1441J-00 |
ﾊﾟｲﾌﾟ,ｻｲﾚﾝｻ
|
|
38 |
90460-99M23 |
CLAMP, HOSE
|
|
|
