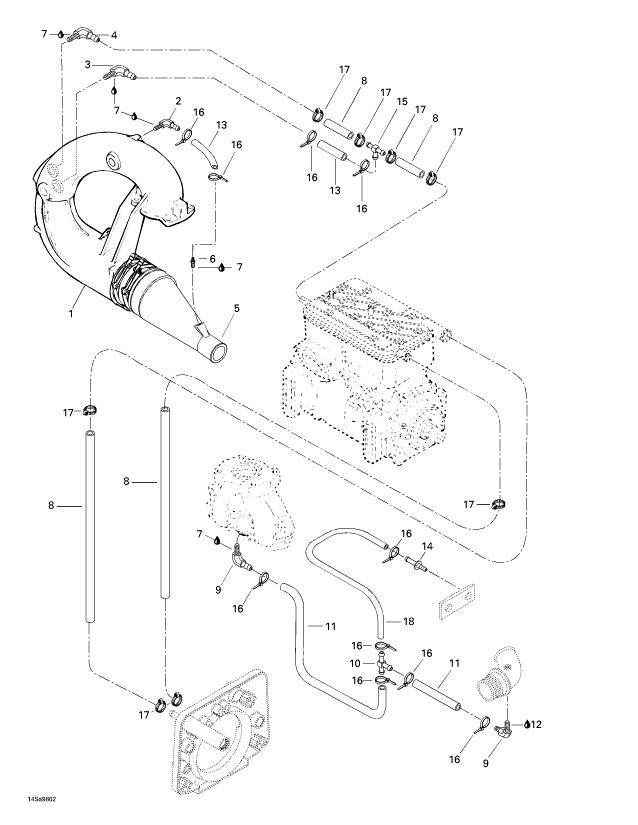

見出番号
部品番号
部品名
数量
1
274000487
PIPE-HEAD
2
293710018
FITTING-ELBOW
3
293710048
4
293700023
5
274000488
CONE-EXHAUST
6
293710037
CONNECTOR-MALE
7
293800013
SEALANT-PIPE
8
276000001
HOSE-12 5MM (PC=1M)
9
293700016
10
293710042
FITTING-T
11
275000007
HOSE-8MM.(10M/PAC)
12
13
276000048
HOSE-6MM
14
291000306
FITTING-BLEED
15
293710052
16
293750001
TIE-RAP 94MM
17
293650037
HOSE-CLAMP
18
