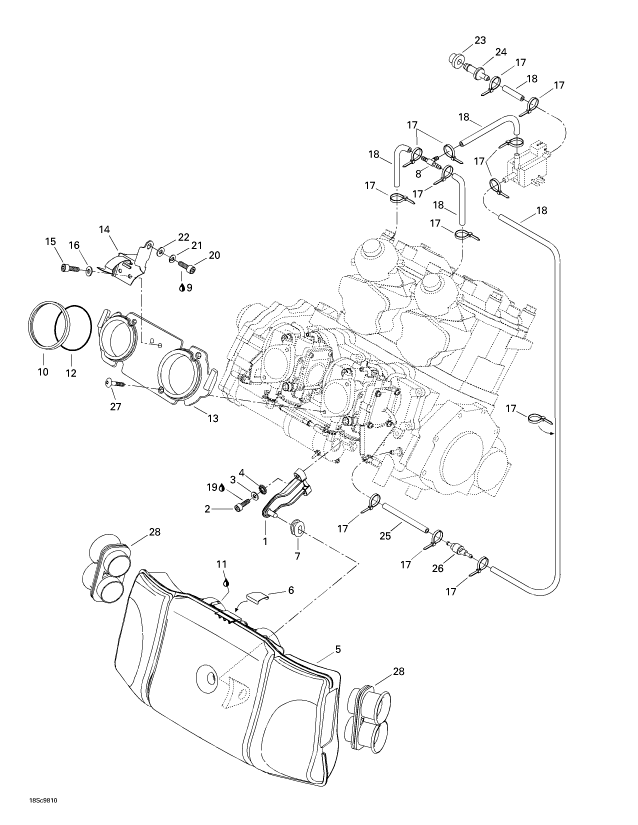

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
273000123 |
SUPP.SILENC
|
|
2 |
215963560 |
SCREW-SOCKET HD.DIN.912A2
|
|
3 |
213200001 |
WASHER-FLAT DIN.125A-A2(M6)
|
|
4 |
217161600 |
WASHER-LOCK SERRATED DIN.6798A
|
|
5 |
273000114 |
SILENCER-AIR
|
|
6 |
273000112 |
PLATE-SUPPORT
|
|
7 |
293720052 |
GROMMET-CABLE
|
|
8 |
293710068 |
FITTING-T
|
|
9 |
293800015 |
LOCTITE-242
|
|
10 |
293250076 |
GASKET
|
|
11 |
293550004 |
GREASE-DIELECT DC4
|
|
12 |
293250065 |
RING-O
|
|
13 |
270500383 |
ADAP-SILENC.AIR
|
|
14 |
270000419 |
HOLDER
|
|
15 |
211000177 |
SCREW-SOCKET DIN.912A2 S.GRIP
|
|
16 |
213200001 |
WASHER-FLAT DIN.125A-A2(M6)
|
|
17 |
293750001 |
TIE-RAP 94MM
|
|
18 |
270000374 |
HOSE-4.3MM(15M/PAC)
|
|
19 |
293800005 |
LOCTITE-271
|
|
20 |
215981660 |
SCREW-SOCKET HD.DIN.912A2
|
|
21 |
213000001 |
WASHER-LOCK HELICAL DIN.127B-
|
|
22 |
213200011 |
WASHER-FLAT DIN.9021B-A2
|
|
23 |
293720029 |
GROMMET
|
|
24 |
293700031 |
FITTING
|
|
25 |
276000048 |
HOSE-6MM
|
|
26 |
275500417 |
VALVE-CHECK
|
|
27 |
270500357 |
SCREW-ASSY.
|
|
28 |
273000107 |
TUBE-INLET TOP
|
|
