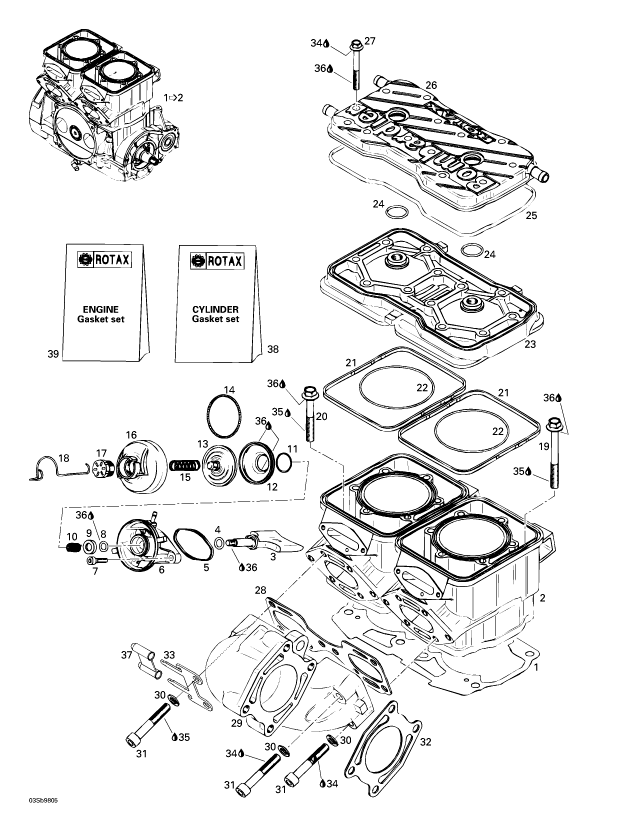

1

290078703

BLOCK-SHORT787

1

290931724

GASKET-CYL **ｷｮｳｷｭｳﾃｲｼ**

1

290931723

GASKET-CYL.
Gasket

1

290931722

**ｷｮｳｷｭｳﾃｲｼ** G/K CYL.
Gasket

1

290931721

GASKET-CYL.
Gasket

1

290931720

GASKET-CYL.
Gasket

2

290923548

CYLINDER-ASSY.

3

290854354

VALVE-EXHAUST

4

420430110

RING-O

5

290931670

GASKET-RUBBER

6

290854438

HOUSING-VALVE

7

210100012

SCREW-SOCKET HD.DIN.912A2

8

290931765

RING-O

9

290926225

RING-SUPPORTING

10

290838260

SPRING-COMPRES

11

420838253

CLAMP-SPRING

12

420260728

BELLOWS

13

290854447

VALVE-EXHAUST

14

290239048

SPRING-HOSE

15

290939137

SPRING-RAVE

16

290911555

COVER-VALVE

17

420241220

SCREW-ADJUSTER

18

420838082

CLIP-SPRING

19

290941903

SCREW-HEX.FLAN

20

290941333

SCREW-HEX.FLAN

21

290931420

RING-RUBBER

22

290931410

RING-O

23

290923302

HEAD-CYLINDER

24

420430782

RING-O

25

290831550

RING-O

26

290923313

COVER-CYL.HEAD

27

290240728

SCREW-HEX.FLAN

28

290931480

GASKET

29

290979482

MANIFOLD-EXH.

30

234101601

WASHER-LOCK HELICAL

31

205006060

SCREW-SOCKET HD.DIN.912A2

32

290931500

GASKET

33

278001273

PLATE-GROUND

34

293800015

LOCTITE-242

35

293800038

LOCTITE-518

36

413707000

DOW CORNING 111

37

278000213

INSULATOR

38

290886396

SET-GASKET CYL

39

290886392

SET-GASKET
